Machine Calibration
X63/X62 Installation and Calibration Manual
3-2
Measuring Machine Lengths
Accurately measure and enter the machine dimensions into the
3DMC machine builder (Table 3-1). Verification and adjustment for
several critical lengths are described in Chapter 4.
Incorrect measurements or data entry errors have a
direct affect on excavating accuracy.
Take each measurement twice to ensure accuracy.

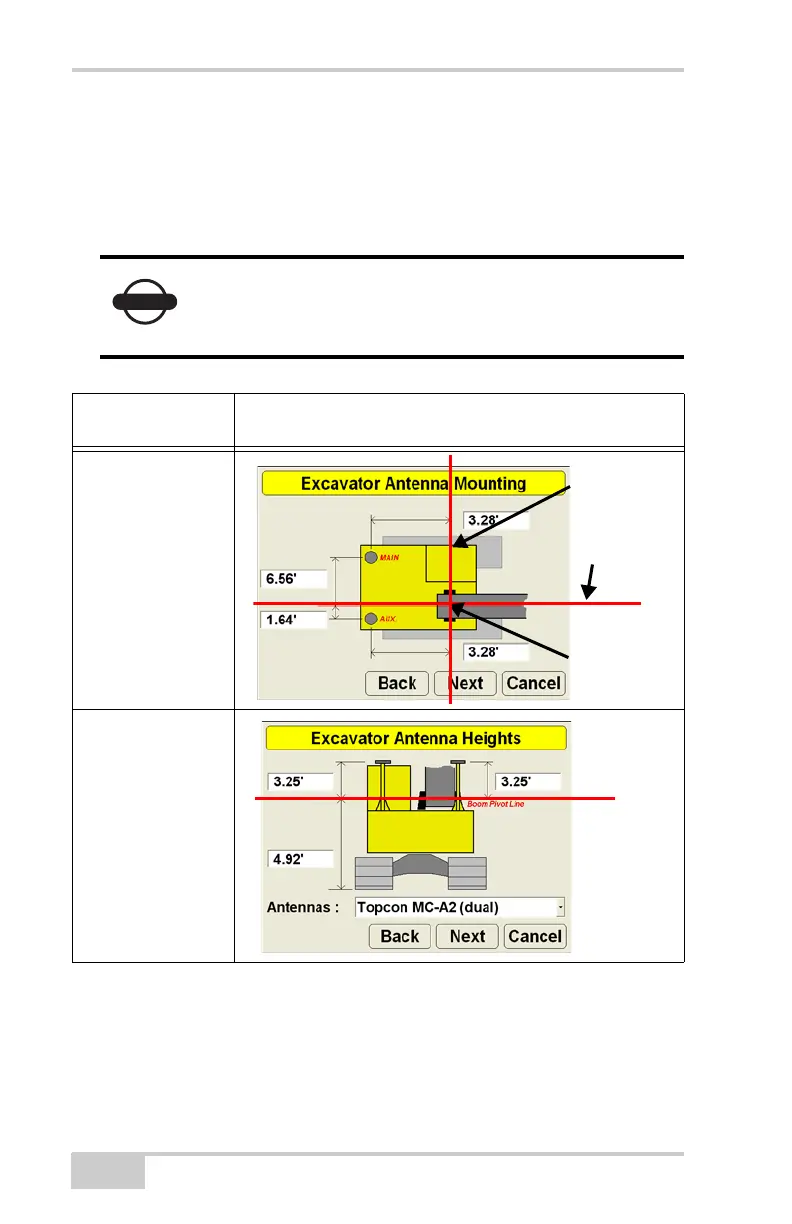

Table 3-1. Machine Measurements
Measurements To
Take
Screen Shot
Antenna Positions
Antenna Heights
Boom Pivot
Line
Boom
Center Line
Boom
Center
To Next Page
