TS-1 Sensor Installation
X63/X62 Installation and Calibration Manual
2-2
TS-1 Sensor Orientation

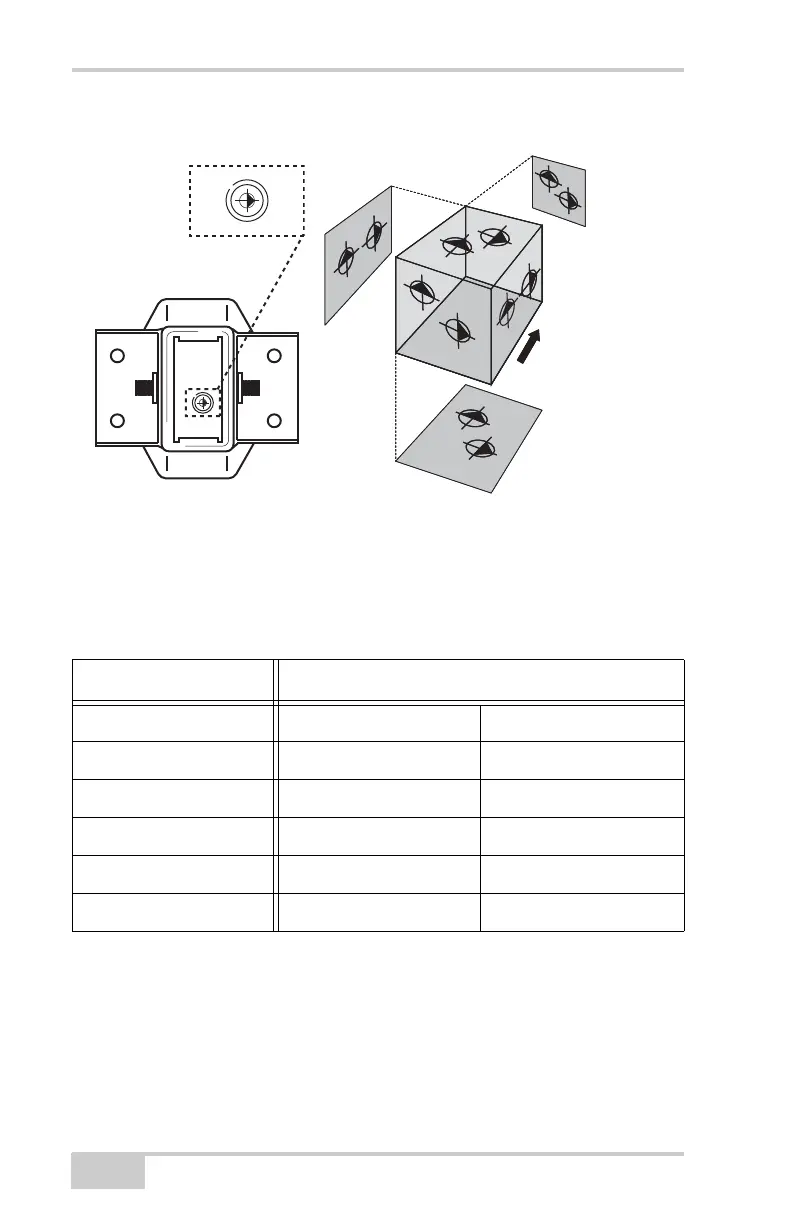

Figure 2-1. TS-1 Arrow Marker Location and Direction
Table 2-1 indicates arrow marker direction options once the mounting
surface has been selected. These directions assume the mounting
surface is at zero degrees.
Table 2-1. Marker Direction Options
Mounting Surface Marker Direction Options
Back Right Up
Down Forward Right
Forward Right Up
Left Up Forward
Right Forward Up
Up Forward Right
Direction
of Travel
Left
Forward
Back
Down
Right
Up
Back
Arrow Marker
