CAN Termination
P/N 7010-0697
3-35
CAN Termination
To ensure proper communication between the sensors and the GX-60,
the last sensor physically connected must use the hard terminator
provided with the X63/X62 system. Typically, this hard terminator
connects to the bucket sensor (or the tilt bucket sensor).

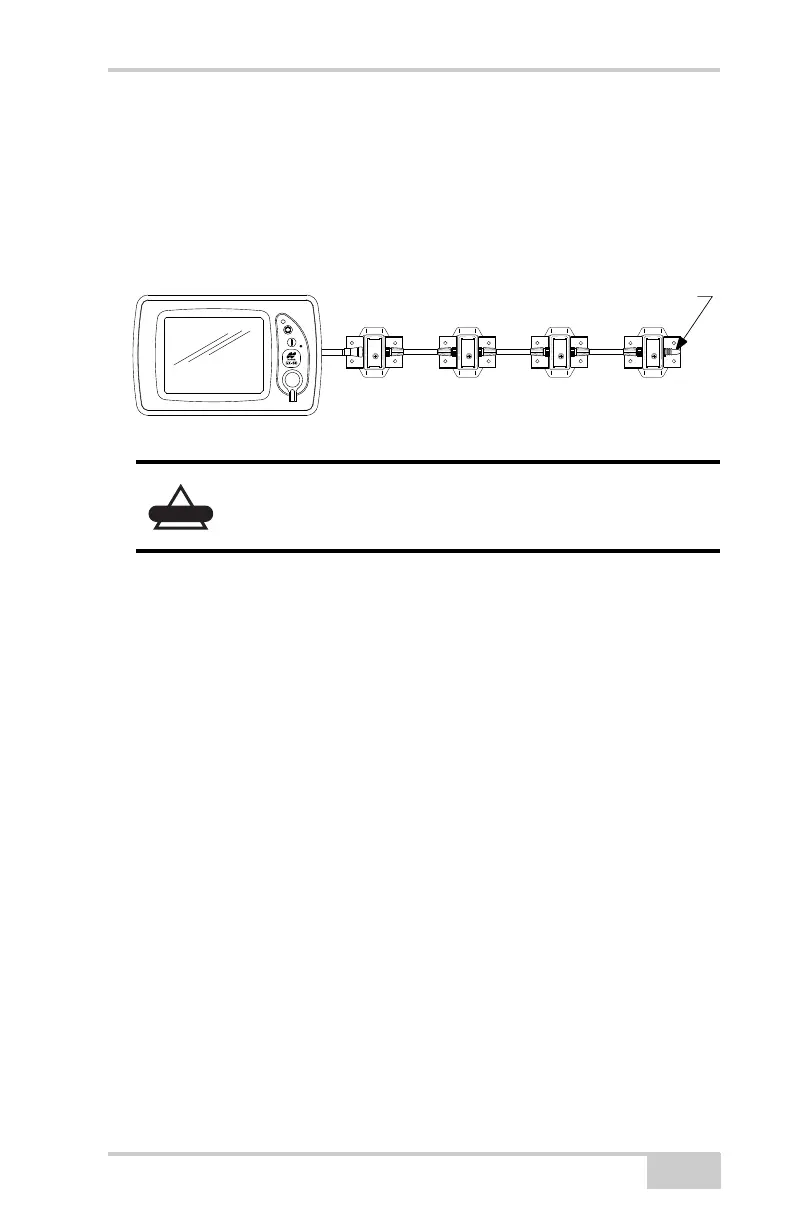

Figure 3-37. Hard Terminator on Sensor Furthest from GX-60
Sensor Filtering
The filter level for each sensor can be changed depending on the
application and operator’s choice. A value of 4 (heavy filtering) will
dampen sensor reaction, while a value of 1 (light filtering) will cause
faster sensor reaction. The default filter level is 2.
1. In 3DMC, tap Topcon LogoControlMachine setup. Select
the applicable machine file and press Edit. Press Next to navigate
to the machine element sensor screen.
2. Tap the Wrench icon for the sensor GX-60
(Figure 3-38).
3. Select a filtering level and press Ok (Figure 3-38).
CAUTION
Do not use the 3DMC software to terminate any
sensor. Use only the hard terminator.
BODY BOOM STICK BUCKET
SENSOR
TERMINATOR
