Topcon X63 - Secondary Boom Sensor Mounting (Optional)

TS-1 Sensor Installation
X63/X62 Installation and Calibration Manual
2-6

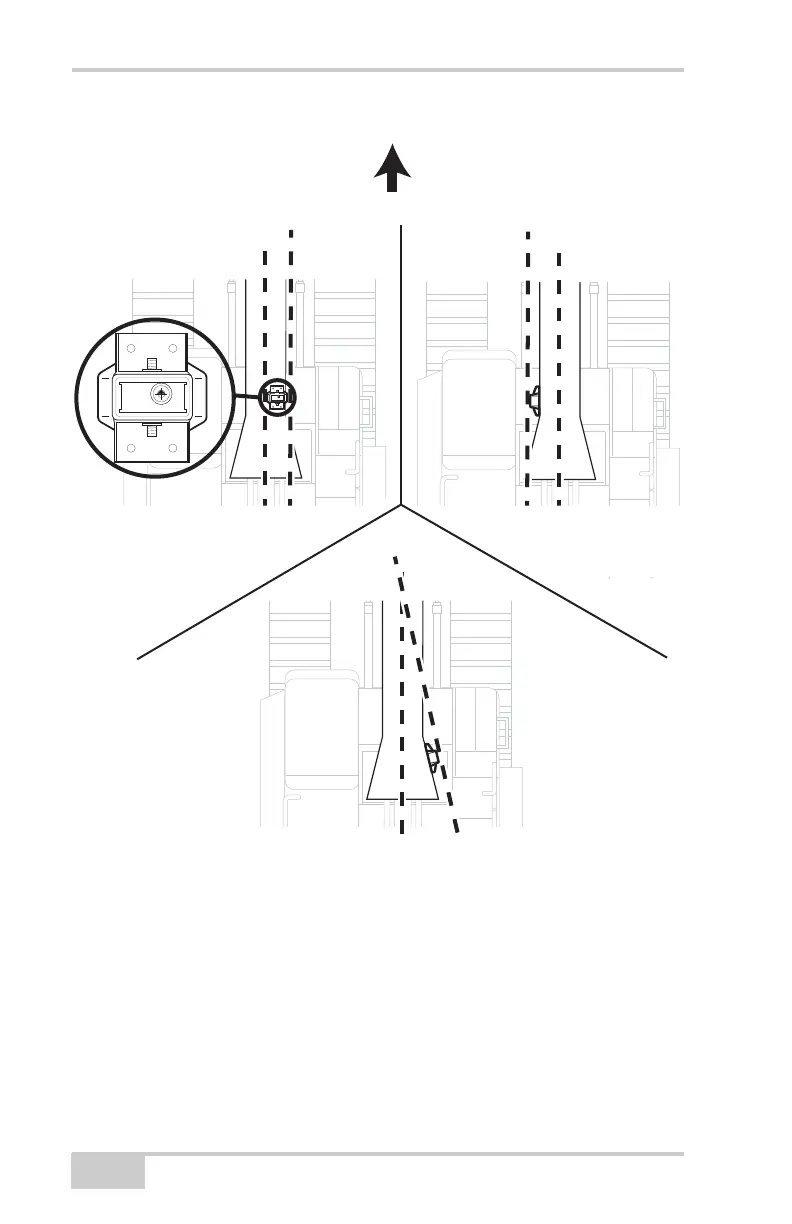

Figure 2-4. Boom Sensor Mounting
Secondary Boom Sensor
Mounting (Optional)
See the previous section “Boom Sensor Mounting” on page 2-5 for
secondary boom sensor mounting locations.
CL
Correct
Up Location
(Recommended)
CL
Correct
Side Location
CL
Incorrect Taper Location
Direction of Travel
