Topcon X63 - Stick Sensor Calibration

Calibrating the Sensors
P/N 7010-0697
3-15
Stick Sensor Calibration
The stick sensor calibration requires both the pitch and the roll
calibration. When performing the stick sensor calibration position the
stick at -90 degrees.
Position the machine on a stable surface free of obstructions and
rotate the body parallel to the tracks.
1. Position the stick at -90°.
2. Align the boom-stick pivot and the bucket pivot.

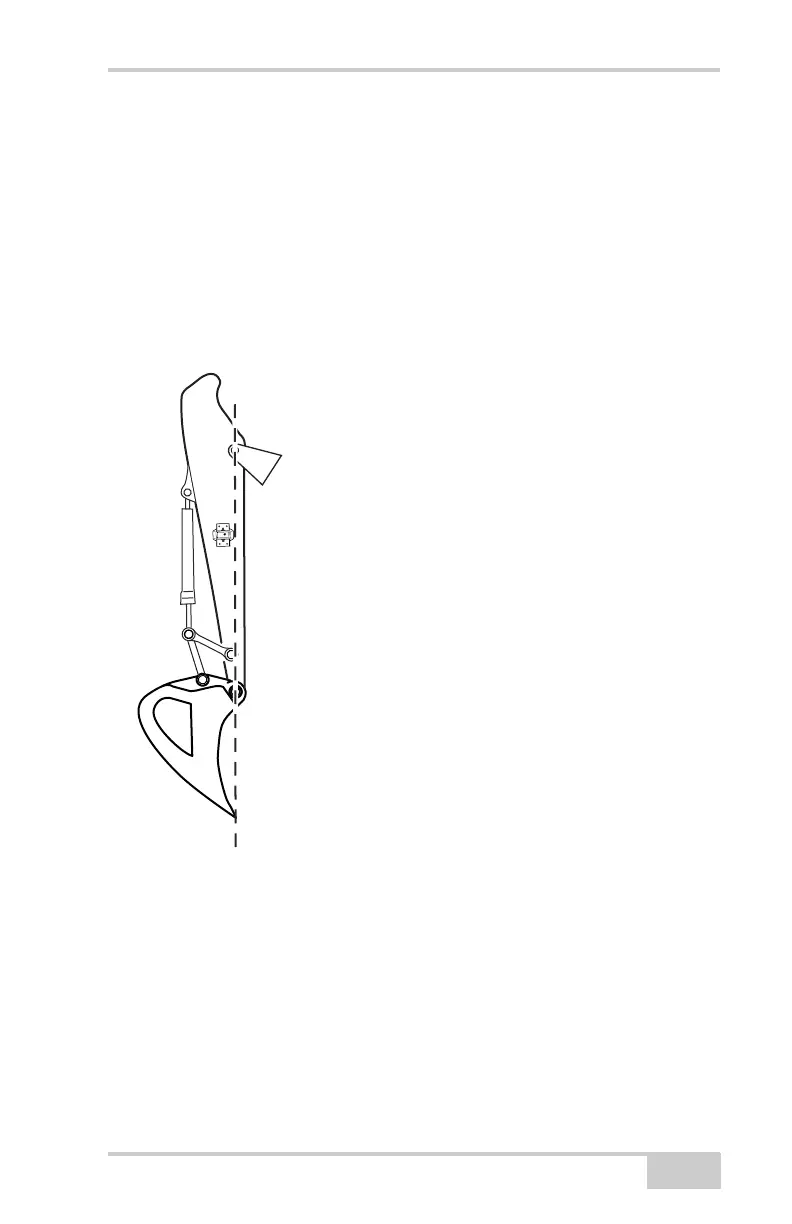

Figure 3-13. Stick at -90°
3. In 3DMC, tap Topcon LogoControlMachine setup. Select
the applicable machine file for the job and press Edit. Press Next
to navigate to the Excavator Stick screen.
