Tilt Bucket Sensor Mounting
(Optional)
If using tilt bucket, an additional sensor may be mounted to the
bucket (Figure 2-8). Tilt bucket sensor mounting differs from all
other sensors. Determine the location and orientation of the sensor
with the bucket hanging vertically.
The recommended location of the sensor is on the left side of the
bucket with the arrow pointing forward, toward the direction of
travel.

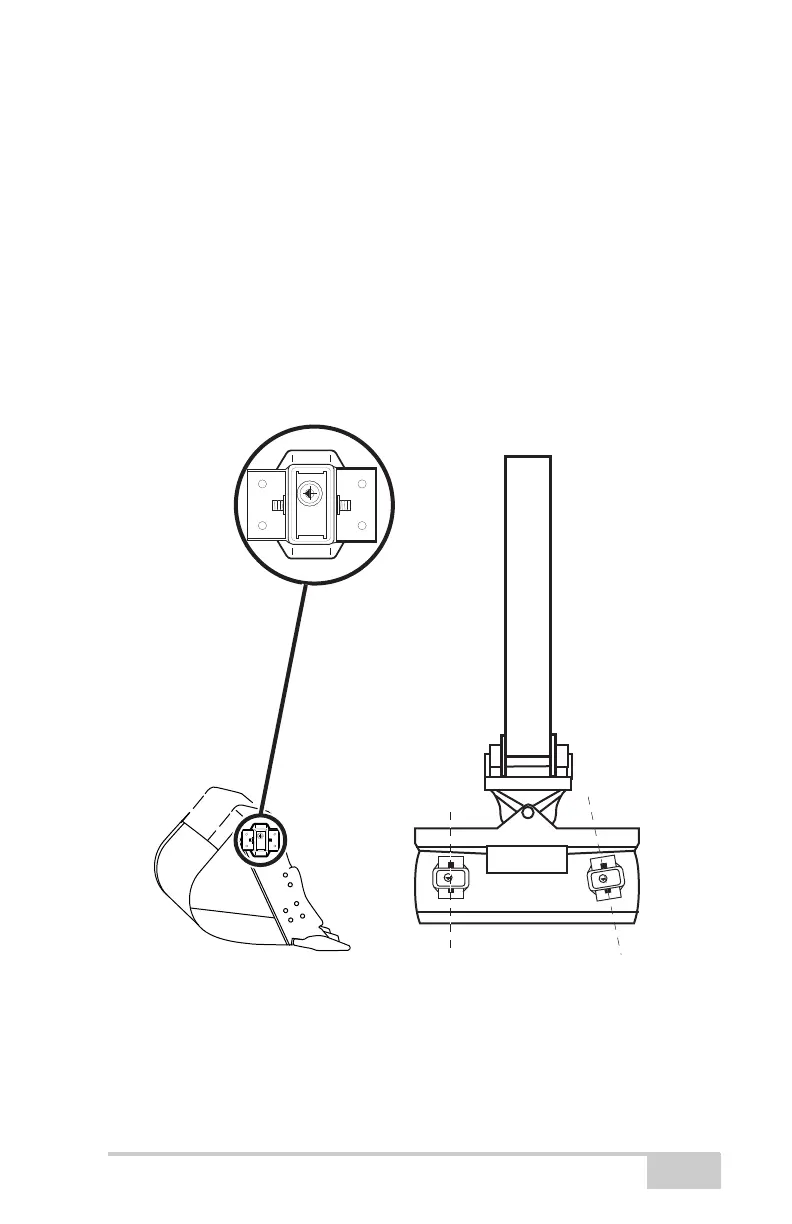

Figure 2-8. Tilt Bucket Sensor Mounting
IncorrectCorrect
Side Location
Incorrect
