TS-1 Sensor Installation
X63/X62 Installation and Calibration Manual
2-10
The orientation of the dog-bone mounted bucket sensor marker is
determined when the dog-bone is horizontal (zero degrees) as shown
in Figure 2-7. Orientation is selected in the Sensor Calibration screen
in 3DMC.
The recommended location of the sensor is on the left side of the dog-
bone with the arrow pointing forward, toward the direction of travel.

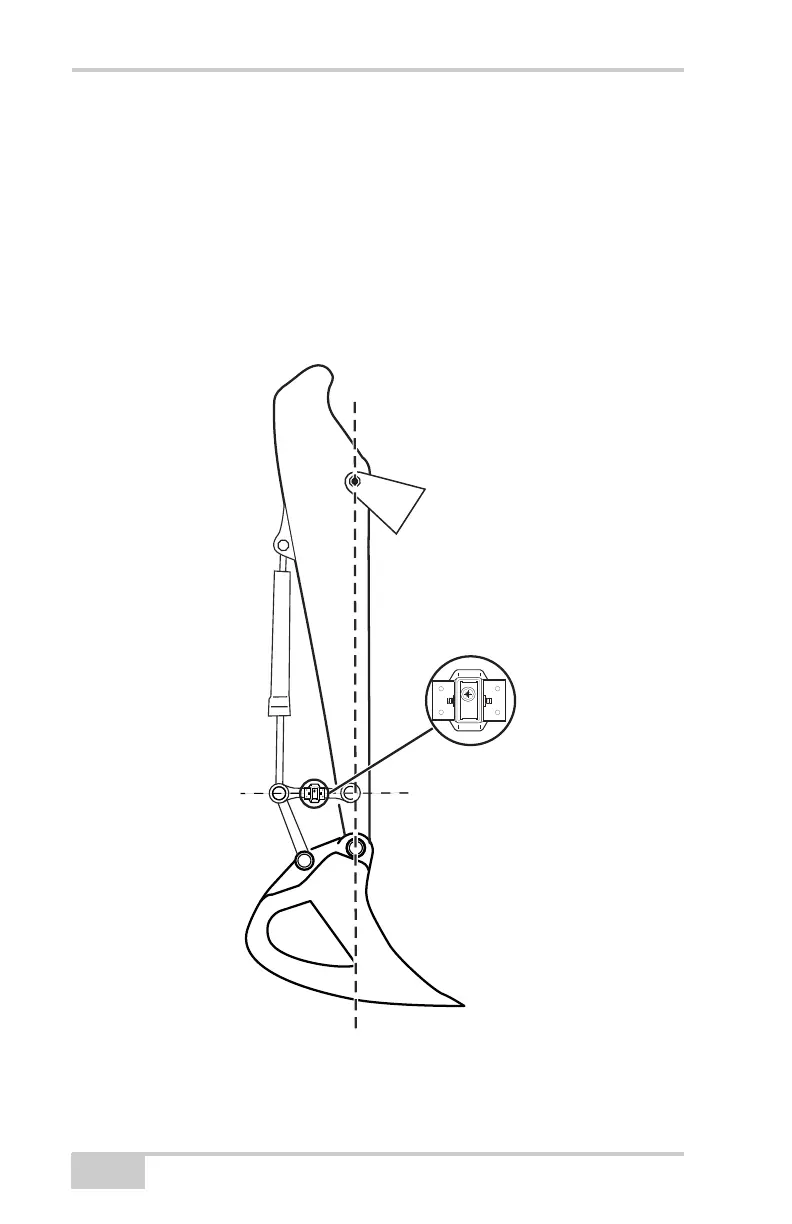

Figure 2-7. Dog-bone Sensor Mounting Example
