Bucket Edge Calibration
Perform the following bucket edge calibration procedures for all
bucket types. These calibrations must also be performed for each
individual bucket when using multiple buckets.
1. With the bucket plumb, press Calibrate. Press Ok at the
confirmation. When done, press Next.

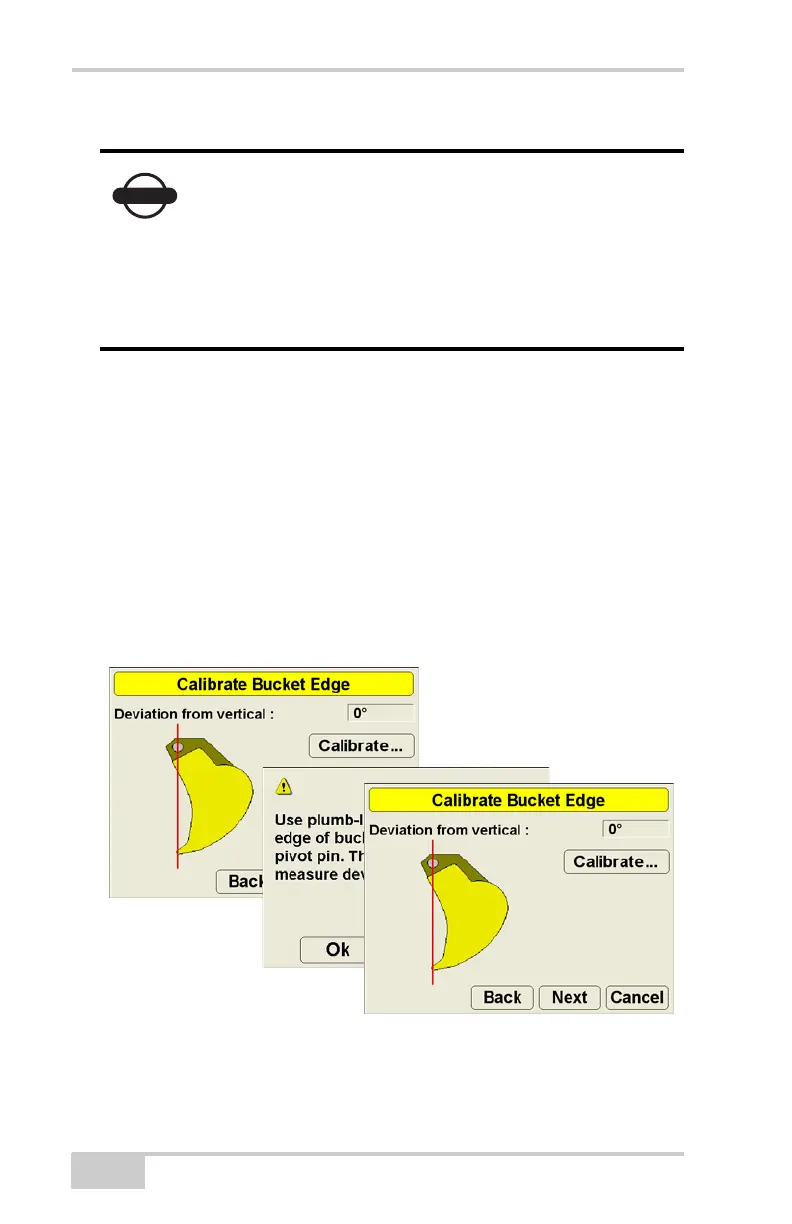

Figure 3-19. Calibrate Bucket Edge
If the body pitch and roll has not changed from
when the body sensor was calibrated, enter the
recorded body Roll value for the bucket Roll value.
If the body pitch and roll has changed, navigate to
the body sensor and record the new body Roll
value, and enter that new value for the bucket Roll
value.
