Calibrating the Sensors
P/N 7010-0697
3-19

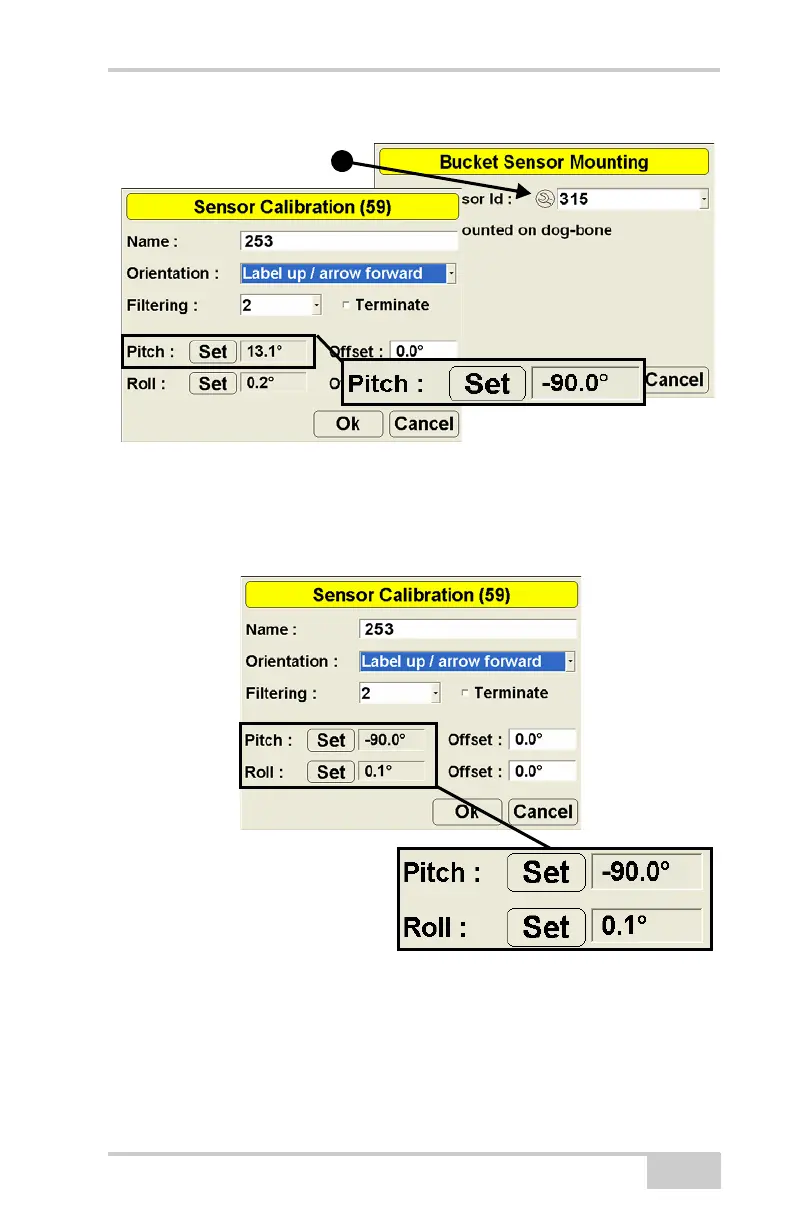

Figure 3-17. Set the Pitch Value to -90.0°
6. Once the bucket Pitch value is set to -90.0°, position the bucket at
zero (0.0°), and then set the bucket Roll value to match the body
Roll value. Press Ok.
Figure 3-18. Set Bucket Roll Value to Match Body Roll Value
5
Roll Value Matches Body
