Machine Calibration
X63/X62 Installation and Calibration Manual
3-16

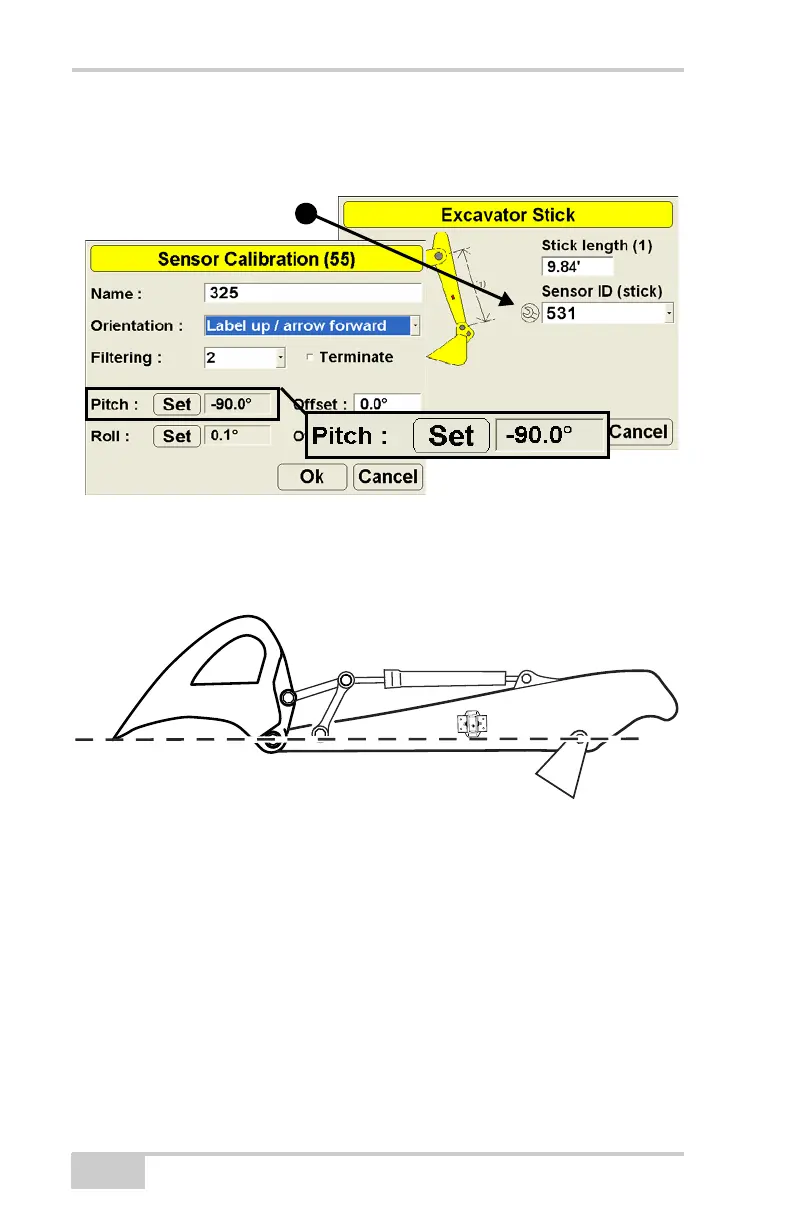

4. Tap the Wrench icon for the stick sensor (Figure 3-14).
5. Set the Pitch to -90.0° and press Ok (Figure 3-14).
Figure 3-14. Set Pitch Value to -90.0
6. Move the stick up in the air until the Pitch reads Zero (0.0°).
Figure 3-15. Pitch 0.0°
