LS-B10W Laser Receiver Setup
X63/X62 Installation and Calibration Manual
5-4
4. Enter the following measurements for the
LS-B10W (Figure 5-3 on page 5-4).
• Depth to center of stick – enter the measurement for the
distance between the middle of the stick to the light cells on
the LS-B10W.
• From bucket pivot – enter the measurement for the distance
between the bucket-stick pivot point to the mark on the
LS-B10W.
• Left of pivot line – enter the measurement for the distance
between the mark on the LS-B10W and the pivot line
5. Make sure the LS-B10W laser receiver is vertical, and then press
Calibrate to determine the angle between the stick and the
LS-B10W (Figure 5-3 on page 5-4).

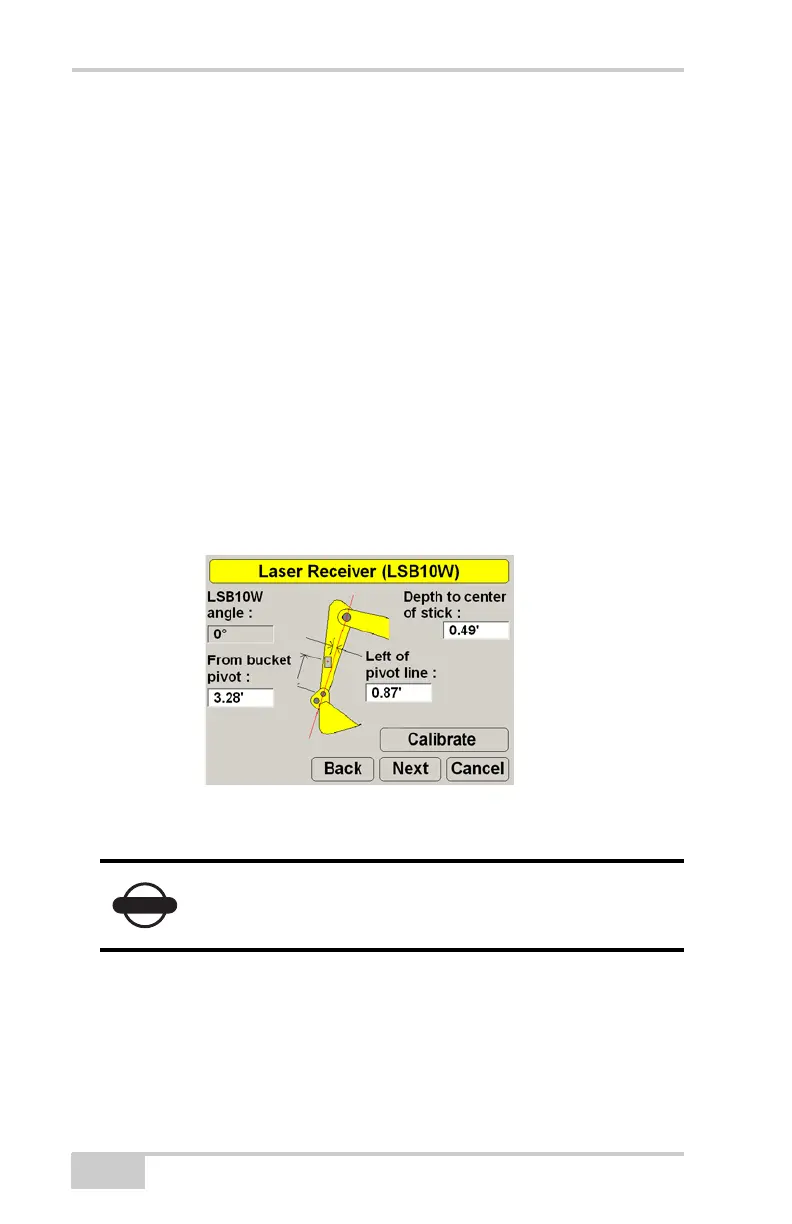

Figure 5-3. LS-B10W Laser Receiver Measurements
If the stick sensor is replaced with a new tilt sensor,
you must recalibrate the LS-B10W laser receiver.
