DRIVE SYSTEM

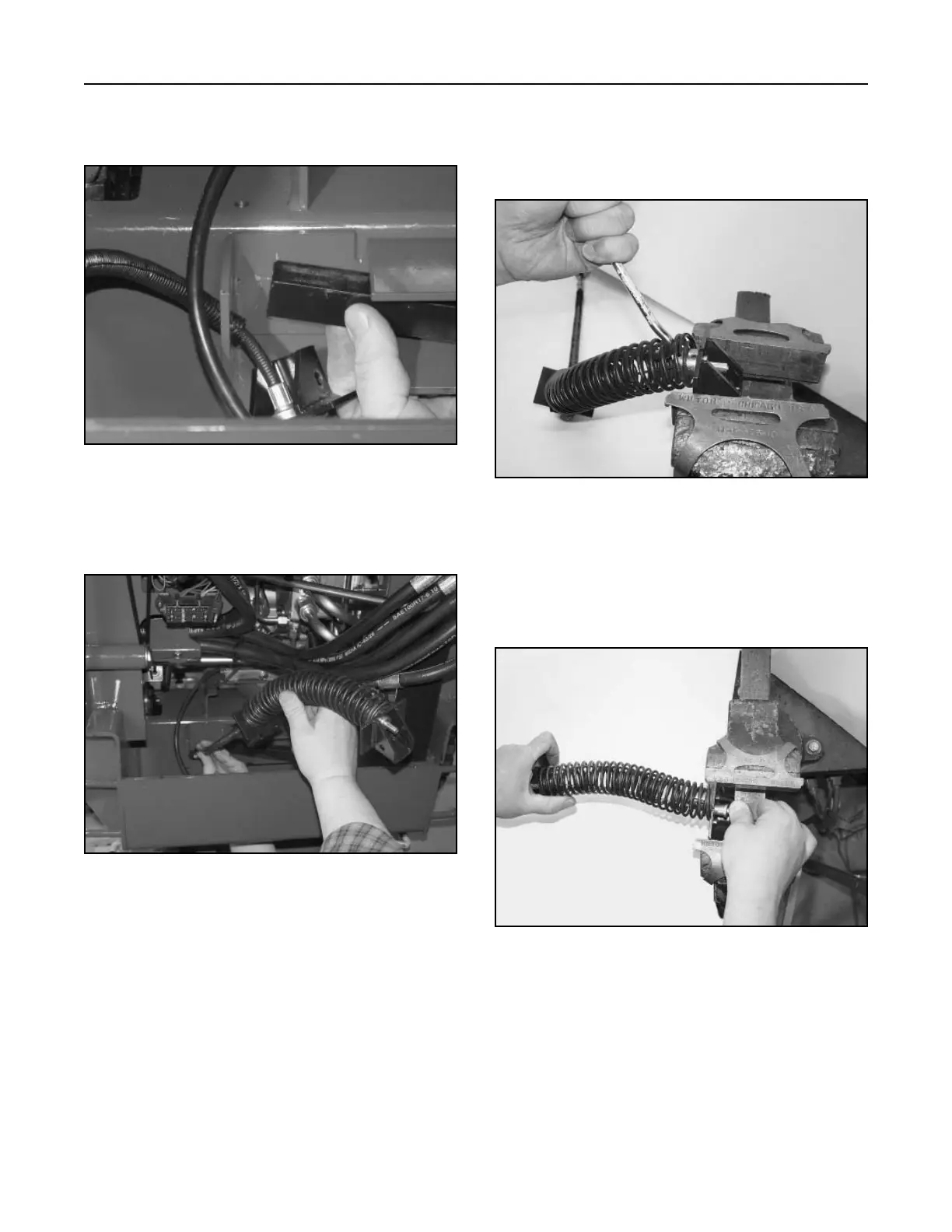

6. Slide the left brake bar out of the frame (Fig.
506).
8. Clamp the right side cable bracket in a vise.
Using a tool to hook into the spring, pull back the
spring enough to reach the set screw in the tube
guide (Fig. 508).
Figure 506 DSC-1271
Figure 508 DSC-1274
7. Remove the spring assembly and cable (Fig.
507).
Figure 507 DSC-1273
9. Loosen the set screw on tube guide. Carefully
compress the spring and slide the cable end from
the slot in the cable bracket and remove (Fig.
509).
Figure 509 DSC-1276
