DRIVE SYSTEM

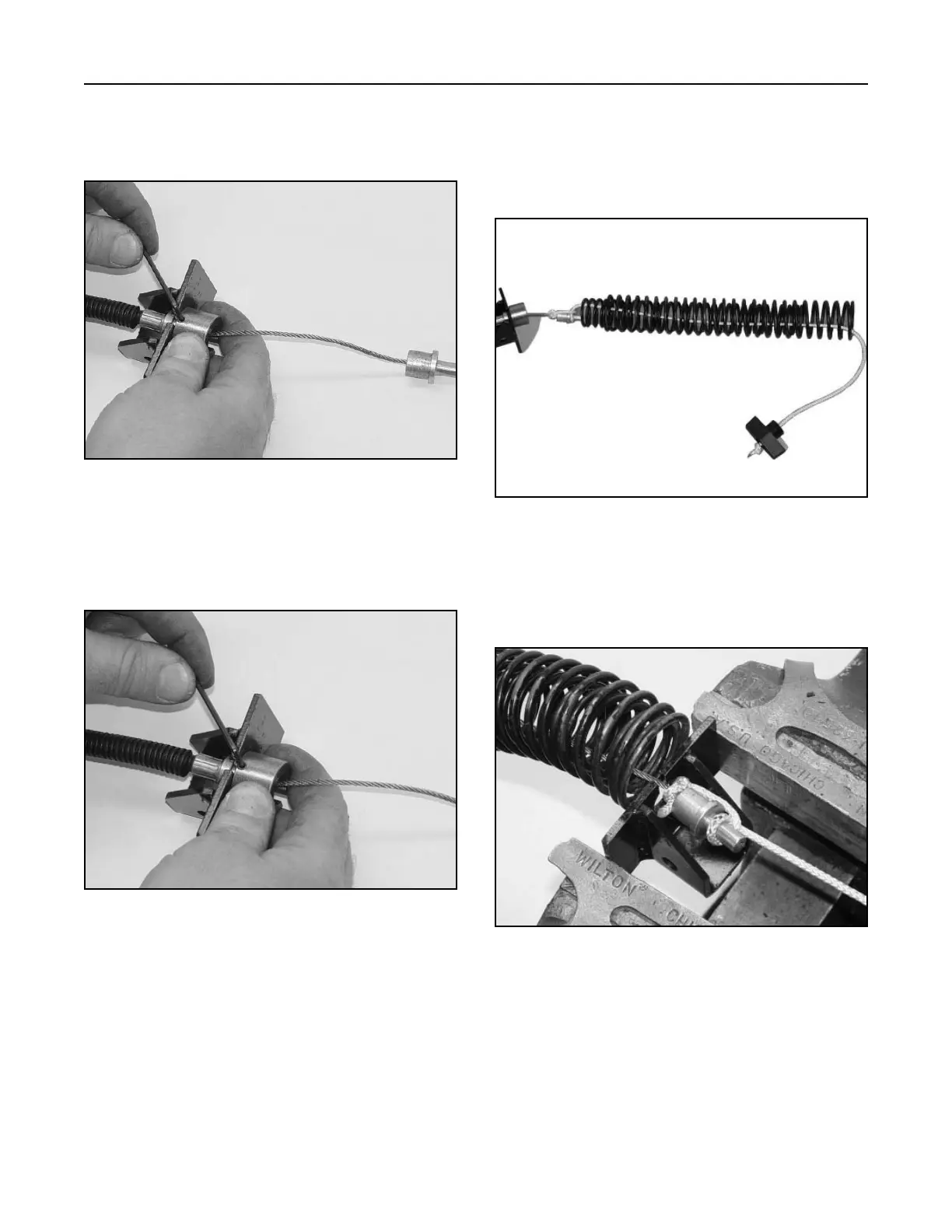

10. Loosen the set screw on the tube guide on the
left side and remove the brake cable from the
cable bracket (Fig. 510).
12. Measure a piece of rope approximately 20"
(50.8cm) long and equip it with a handle. Feed
the rope through the two brake springs. Tie the
rope to the end of the brake cable and pull the
cable through the brake springs (Fig. 512).
Figure 510 DSC-1277
Figure 512 DSC-1283
11. To install a new brake cable, insert the left side of
the cable in the cable bracket and tighten the set
screw (Fig. 511).
13. With the right hand cable bracket in a vise, pull
the brake cable through the brake springs and
slip the cable into the cable bracket (Fig. 513).
Figure 511 DSC-1277
Figure 513 DSC-1284
