TX 413 Service Manual
4-3
ENGINE

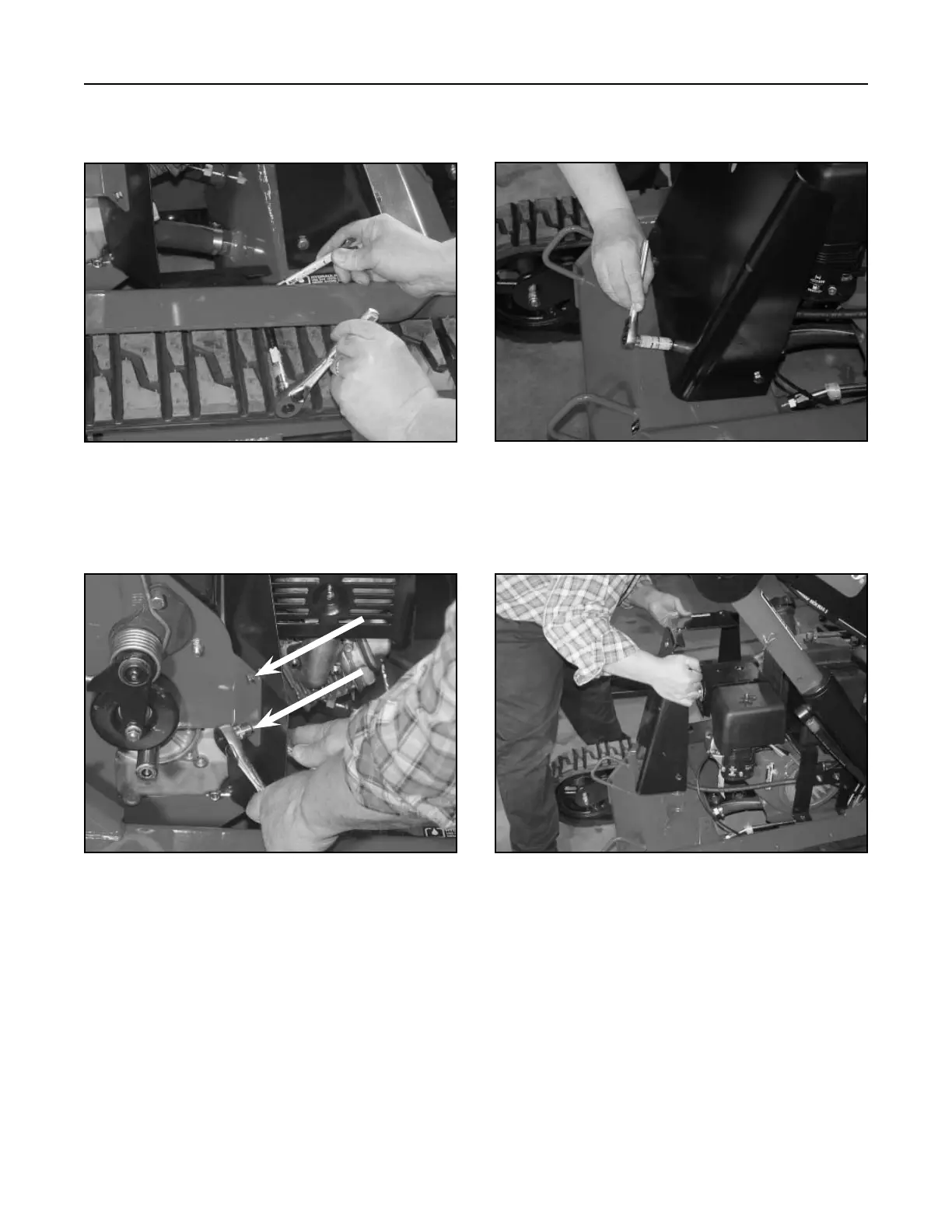

8. Remove the two bolts and nuts on the backside
of the exhaust deflector (Fig. 022).
10. Remove the front grille with the exhaust deflector
attached (Fig. 024).
Figure 022 DSC-1091 Figure 024 DSC-1093
9. Remove the four bolts and nuts at the base of the
front grille (Fig. 023).
Figure 023 DSC-1092
7. Remove the bolt and nut securing the exhaust
deflector to the left hand frame (Fig. 021).
Figure 021 DSC-1090
