ENGINE

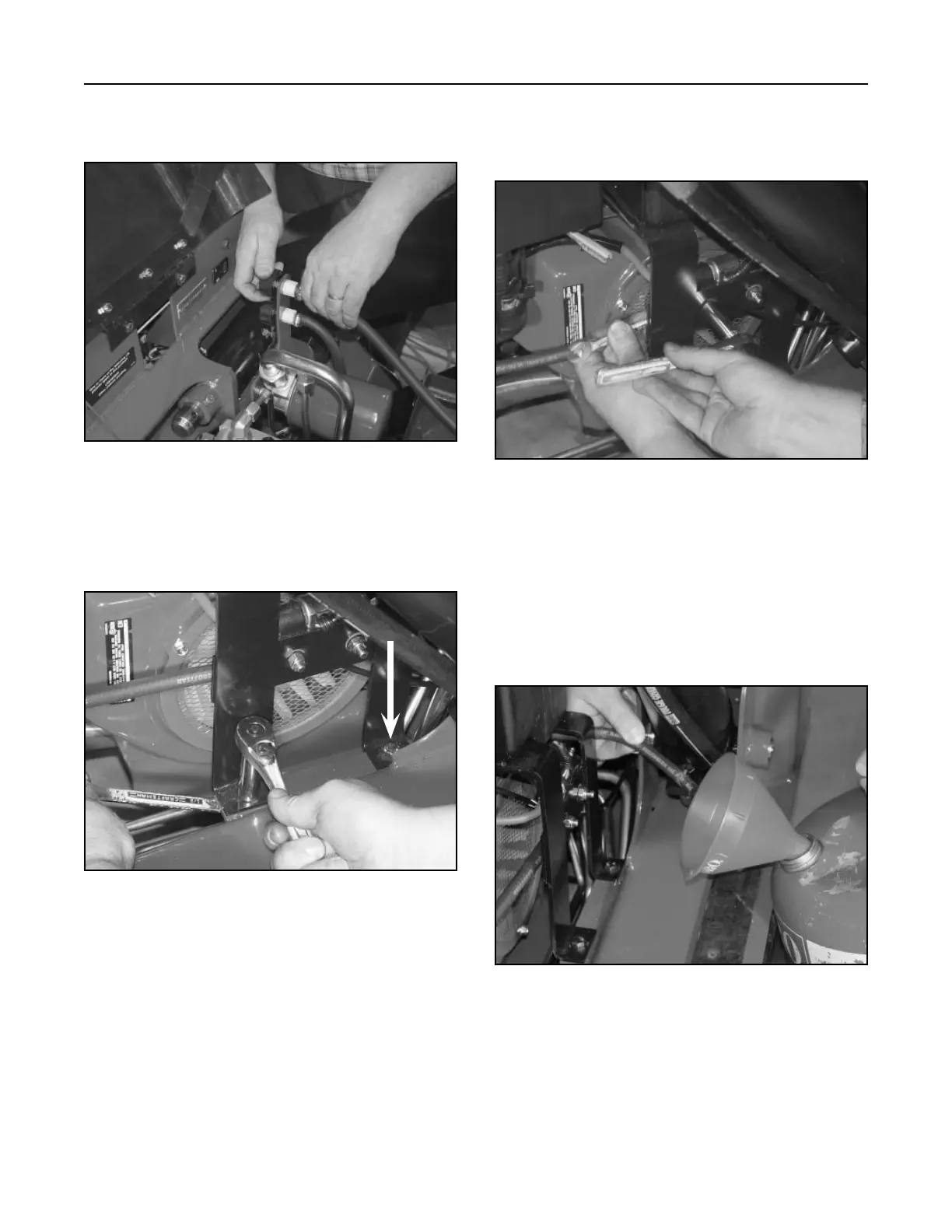

12. At the base of the fuel tank bracket, left side,
remove the two bolts and nuts holding the
bracket to the frame (Fig. 026).
Figure 026 DSC-1096
13. Remove the bolt and nut retaining the hose
clamp for the oil reservoir vent hose and the
clamp holding the fuel shut off valve (Fig. 027).
Figure 027 DSC-1098
4-4
TX 413 Service Manual
11. Remove the gas tank vent hose on the hydraulic
oil filter bracket (Fig. 025).
Figure 025 DSC-1095
NOTE: If there is fuel in the gas tank and the fuel
line is removed between the gas tank and
the fuel shut off valve, fuel spillage will
occur. Drain fuel from the tank prior to
removing any fuel lines.
14. Drain the fuel tank (Fig. 028).
Figure 028 DSC-1134
