TX 413 Service Manual
6-23
HYDRAULIC SYSTEM

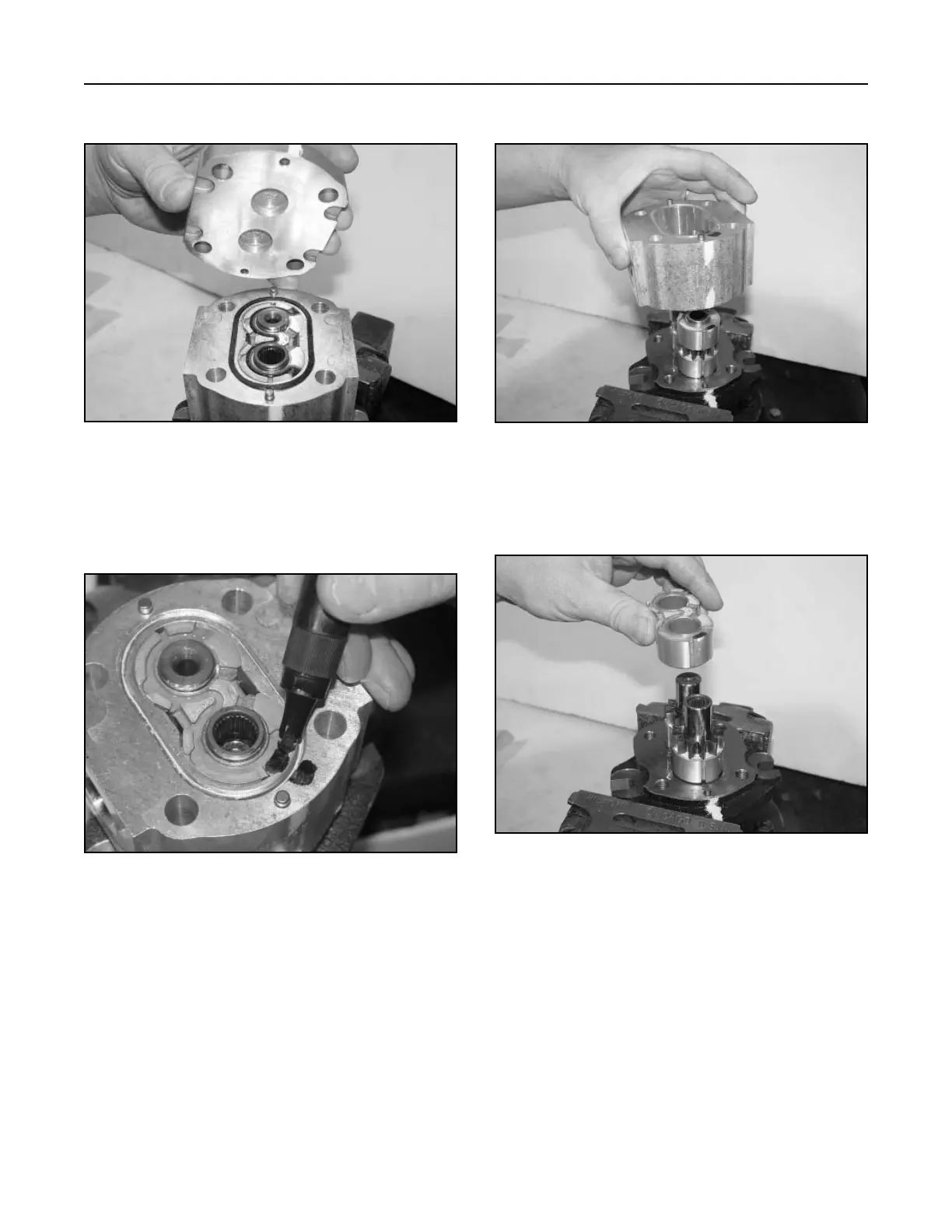

5. Remove the rear cover (Fig. 165).
Figure 165 DSC-1465
6. Remove seals from the body and thrust plate.
With a marker, mark the thrust plate in relation to
the pump body (Fig. 166).
Figure 166 DSC-1467
7. Lift the body from the thrust plate (Fig. 167).
Figure 167 DSC-1468
8. Remove and separate the rear thrust plate from
drive shaft and driven gear (Fig. 168).
Figure 168 DSC-1469
