Toro Dingo TX 413 User Manual

Rev. 000

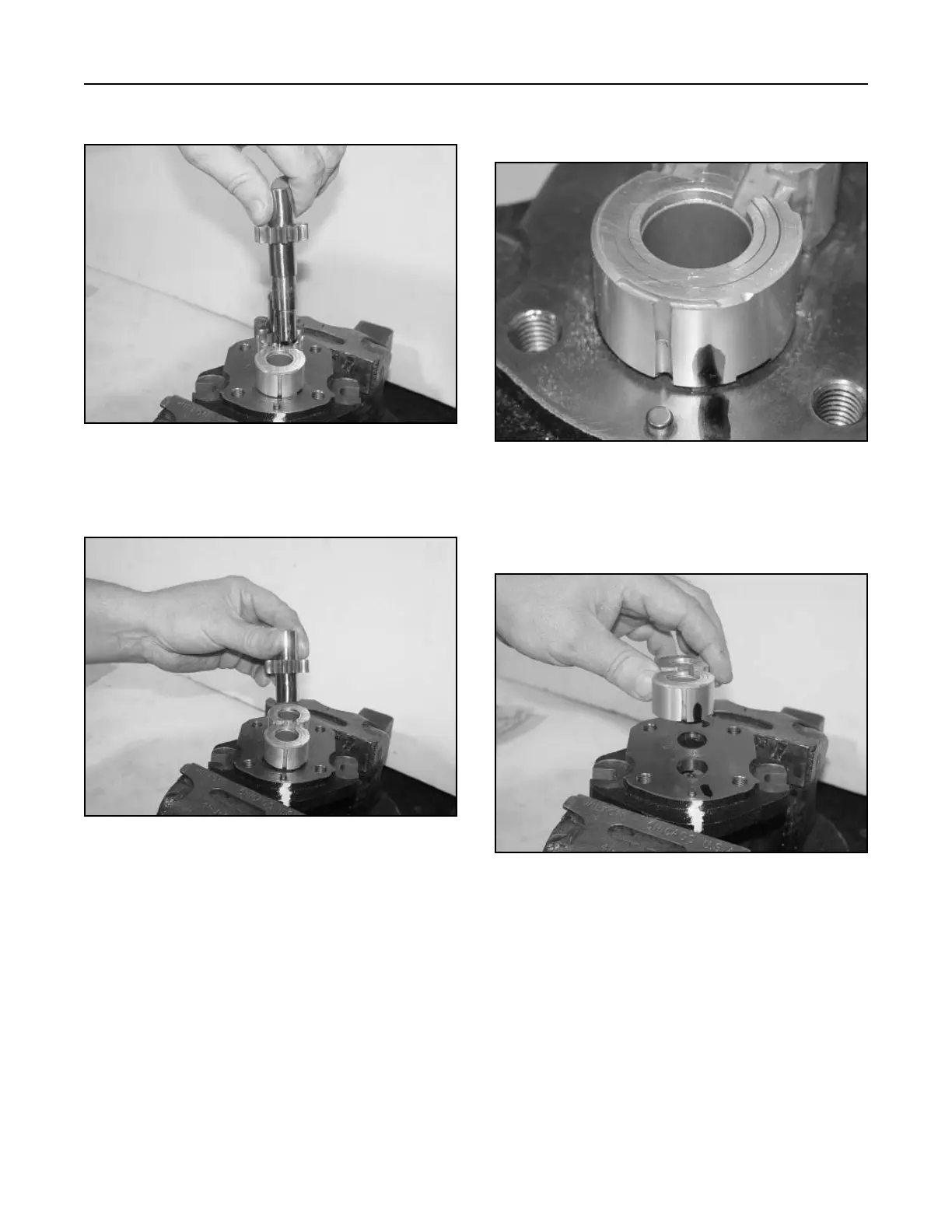

9. Remove the input shaft and gear (Fig. 169).
Figure 169 DSC-1472
HYDRAULIC SYSTEM
6-24
TX 413 Service Manual
12. Remove the thrust plate from the front cover (Fig.
172).
Figure 172 DSC-1475
10. Remove the driven gear (Fig. 170).
Figure 170 DSC-1473
11. With a marker, mark the thrust plate in relation to
the front cover (Fig. 171).
Figure 171 DSC-1474

Toro Dingo TX 413 Specifications

General

Brand	Toro
Model	Dingo TX 413
Category	Compact Loader
Language	English
