Reelmaster 5200-D/5400-D Hydraulic SystemPage 4 - 49

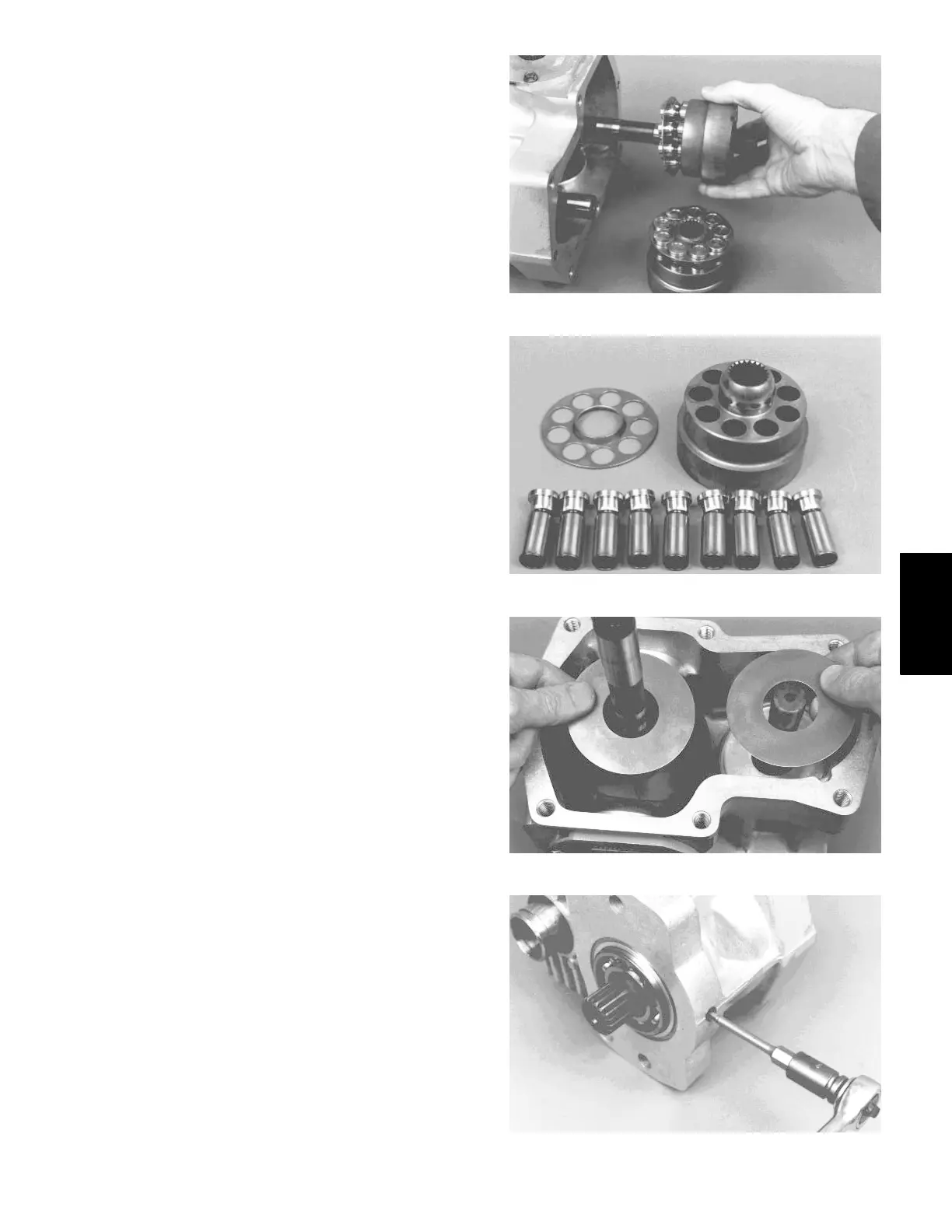

7. Lay transmission on its side and remove motor cylin-
der block assembly from the housing. Remove pump
cylinder block assembly from pump shaft (Fig. 47).
IMPORTANT: Pump and motor cylinder block as-
semblies are identical. To avoid mixing wear pat-
terns, do not mix parts between pump and motor
cylinder block assemblies. Make sure each piston is
returned to the bore it was taken from.
8. Remove slipper guide and piston assemblies from
cylinder blocks (Fig. 48).
9. Use O-ring pick or wire to remove thrust plates from
swashplate and housing (Fig. 49).
10.Use an internal hex wrench to remove pipe plug over
motor shaft bearing retaining pin (Fig. 50).
Figure 47
Figure 48
Figure 49
Figure 50
