Reelmaster 5200-D/5400-DHydraulic System Page 4 - 50
11.Use an 8-32 machine screw to remove motor shaft
bearing retaining pin from housing (Fig. 51).
12.Remove motor shaft from housing (Fig. 52).
13.Press motor shaft out of the bearings and spacer
(Fig. 53).
14.Remove spiral retaining ring and remove PTO seal
guide (with O-ring) from the housing (Fig. 54).

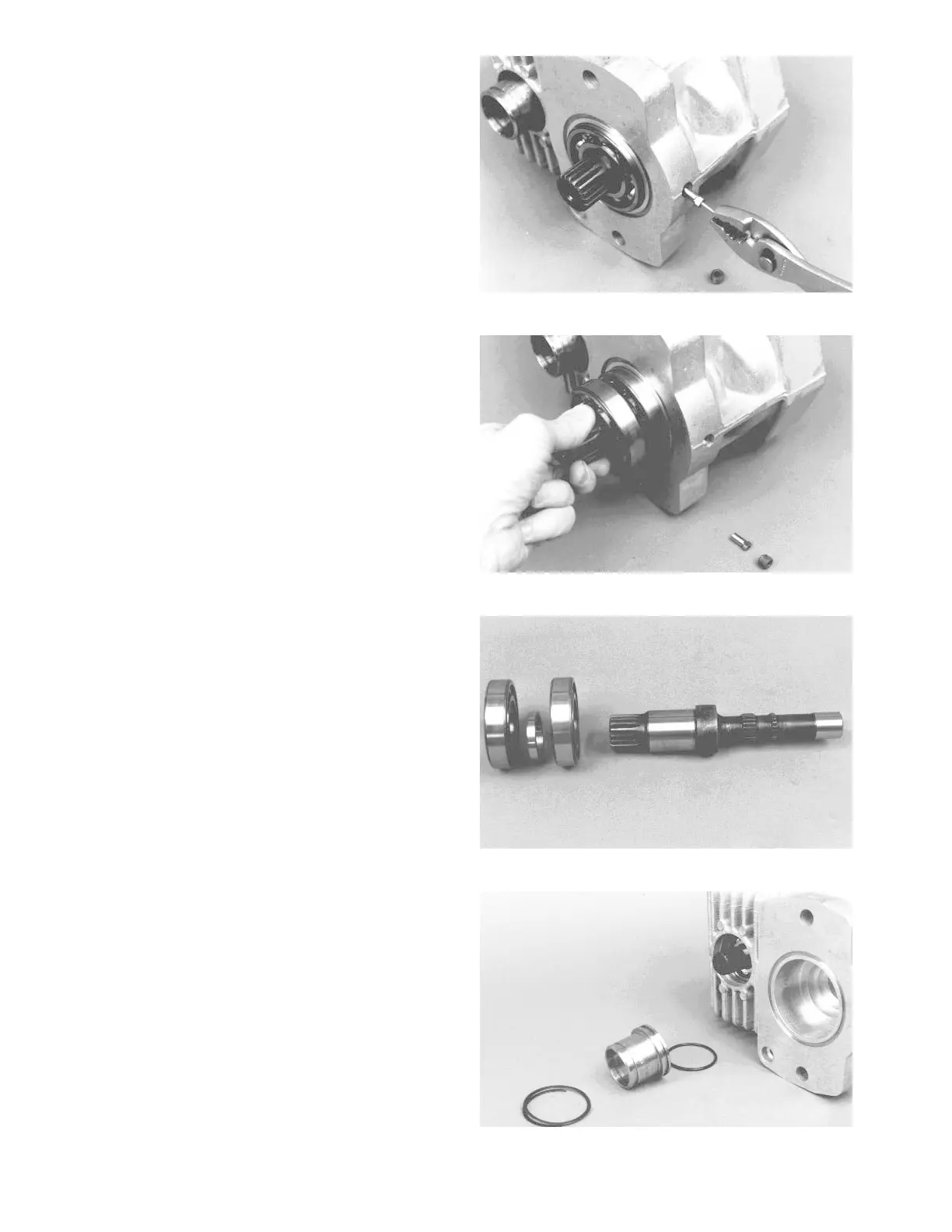

Figure 51
Figure 52
Figure 53
Figure 54
