Toro Reelmaster 5200-D Service Manual

Reelmaster 5200-D/5400-D Hydraulic SystemPage 4 - 53
Note: The trunnion bearings are pressed into the cov-
er assemblies so the split in each bearing will be located
closest to the center section.
3. Install trunnion cover (with O-ring and trunnion bear-
ing) into housing and over swashplate trunnion (Fig. 60).
4. Use an arbor press to press a new seal into trunnion
seal cover. Outer face of seal should be pressed flush
with outer surface of seal cover. Be careful not to dam-
age the seal.
Note: Wrap end of swashplate control shaft with thin
plastic to prevent damage to seal lip during installation.
5. Install trunnion seal cover with O-ring, seal and trun-
nion bearing into housing and over swashplate trunnion
(see Trunnion Seal Replacement) (Fig. 61).
6. Install hex tapping screws and tighten to a torque of
6 to 9 ft-lb (8 to 12 N-m) (Fig. 62).
7. Press ball bearing onto pump shaft. Install pump
shaft and bearing assembly into housing (Fig. 63).

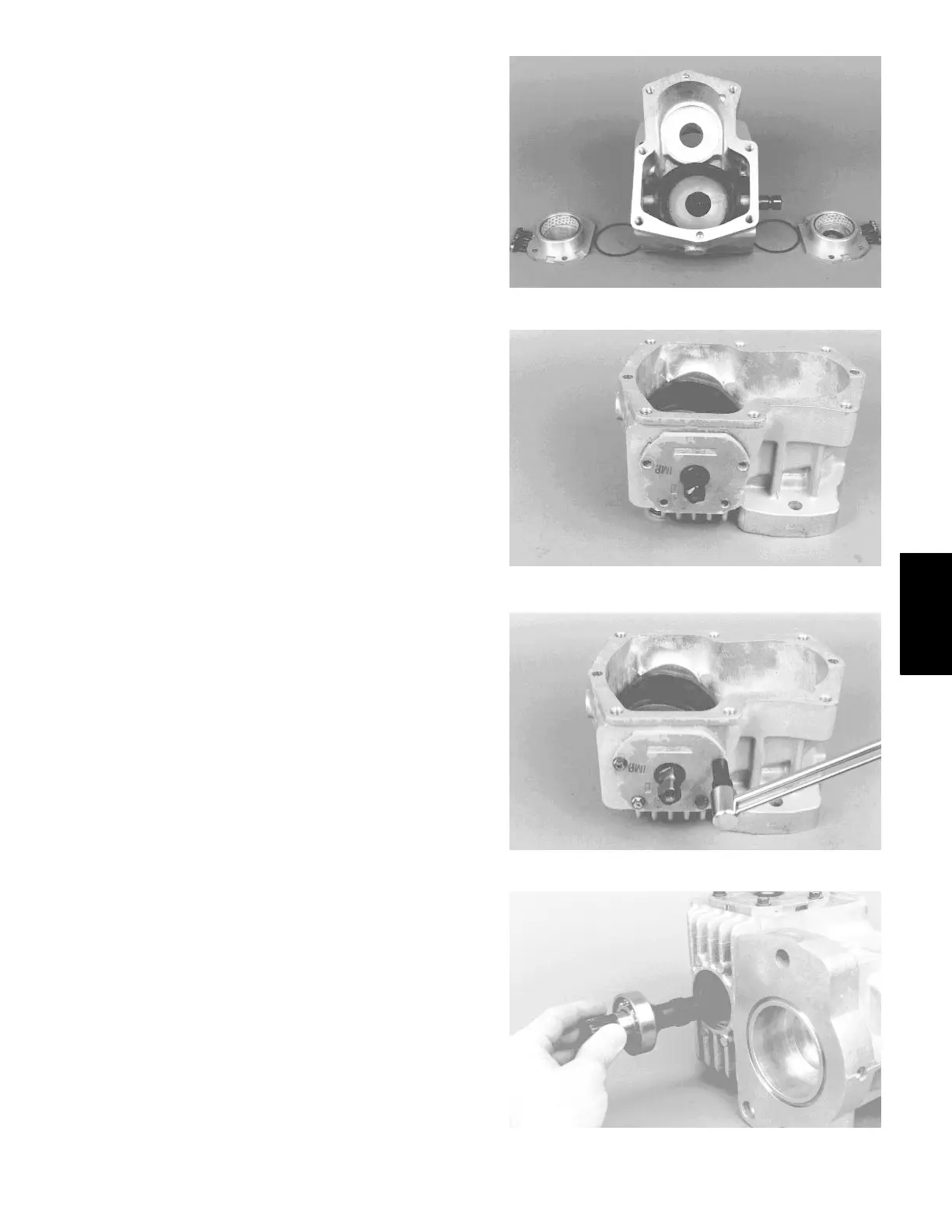

Figure 60
Figure 61
Figure 62
Figure 63
Hydraulic
Systems
