Reelmaster 5200-D/5400-DHydraulic System Page 4 - 54
8. Install PTO seal guide and O-ring into housing.
Install spiral retaining ring (Fig. 64).
9. Press inner bearing, spacer and outer bearing onto
motor shaft (Fig. 65).
10.Install motor shaft assembly into housing (Fig. 66).
11.Install motor shaft bearing retaining pin into housing
(Fig. 67).

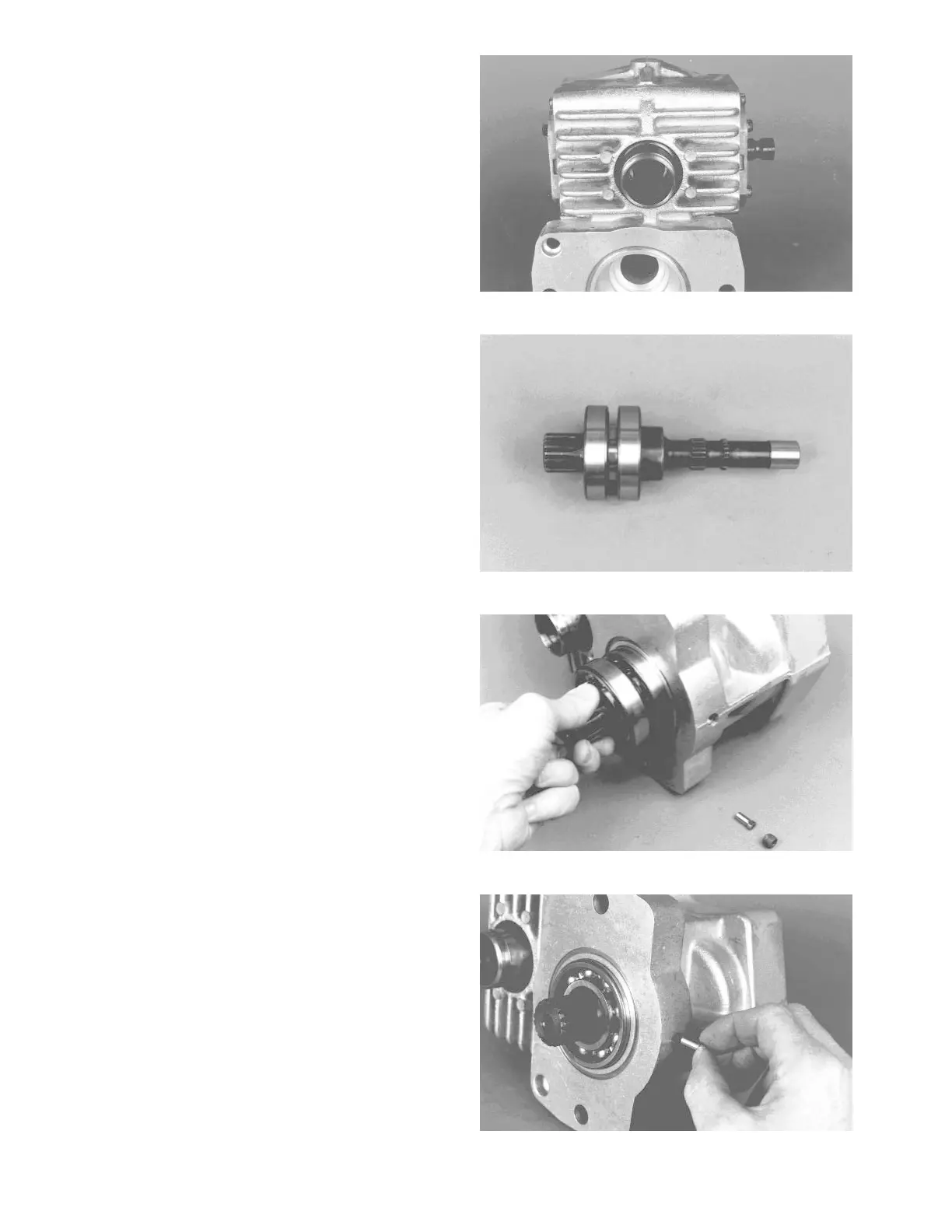

Figure 64
Figure 65
Figure 66
Figure 67
