Reelmaster 5200-D/5400-D Hydraulic SystemPage 4 - 55

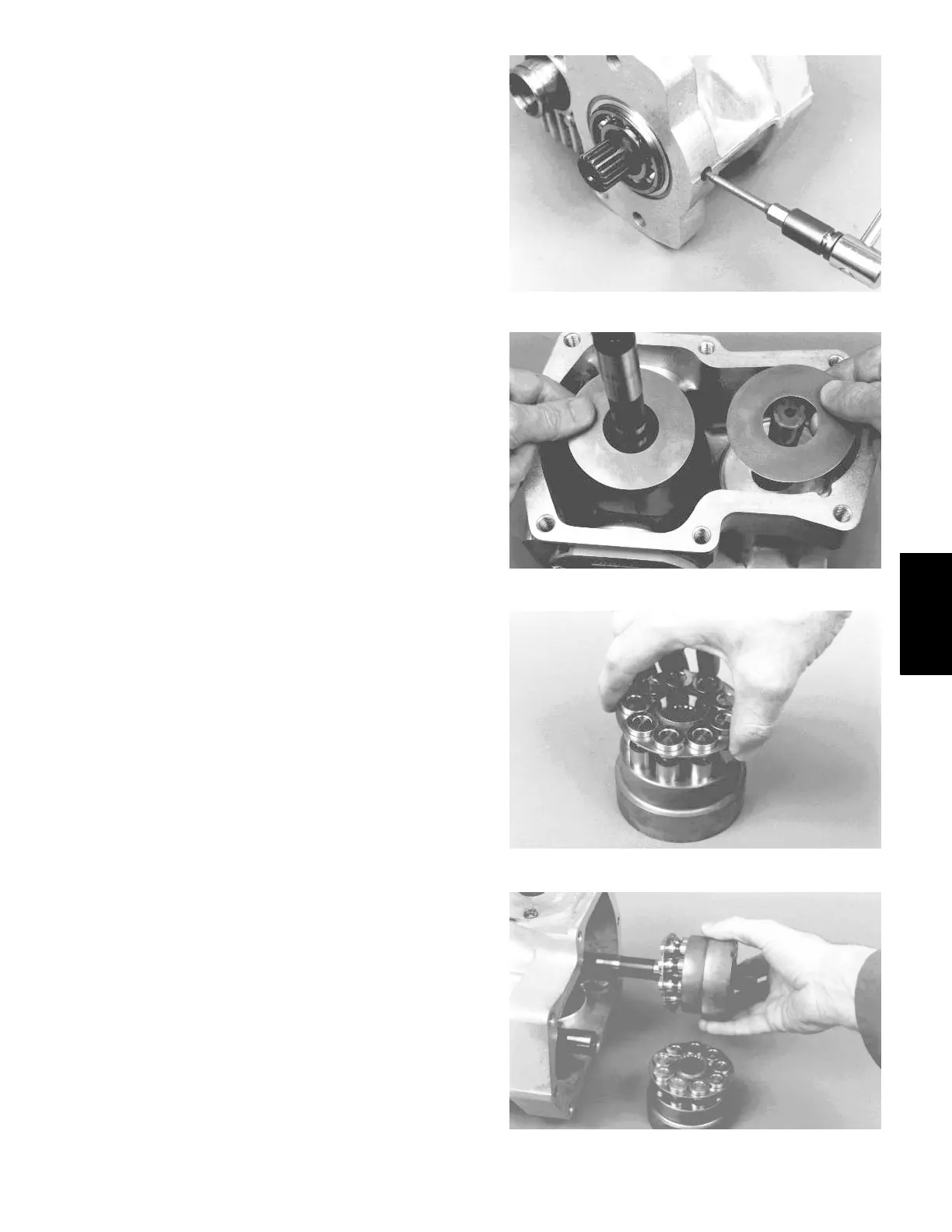

12.Install pipe plug over motor shaft bearing retaining
pin and tighten to a torque of 6 to 9 ft-lb (8 to 12 N-m)
(Fig. 68).
13.Coat thrust plates with petroleum jelly and install into
housing and swashplate (Fig. 69). The thrust plates are
reversible.
14.Assemble each cylinder block kit by installing piston
assemblies into the slipper guide. Lubricate pistons and
cylinder block bores. Install assembled guide and pis-
tons into cylinder block by inserting pistons into cylinder
block bores. The pistons and bores are not selectively
fitted, so no specific piston and bore orientation is re-
quired (Fig. 70).
15.Lay the transmission on its side and install cylinder
block kits into the housing (Fig. 71).
16.Put the transmission housing on a work surface with
the center section opening facing up.
Figure 68
Figure 69
Figure 70
Figure 71
