4
© 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2008A/2508A/3008A/3508A/4508A/5008A
DISASSEMBLY AND REPLACEMENT
4 - 101
4.7.16 Switching regulator cooling fan (M7)
4.7.17 Main power switch (SW1)

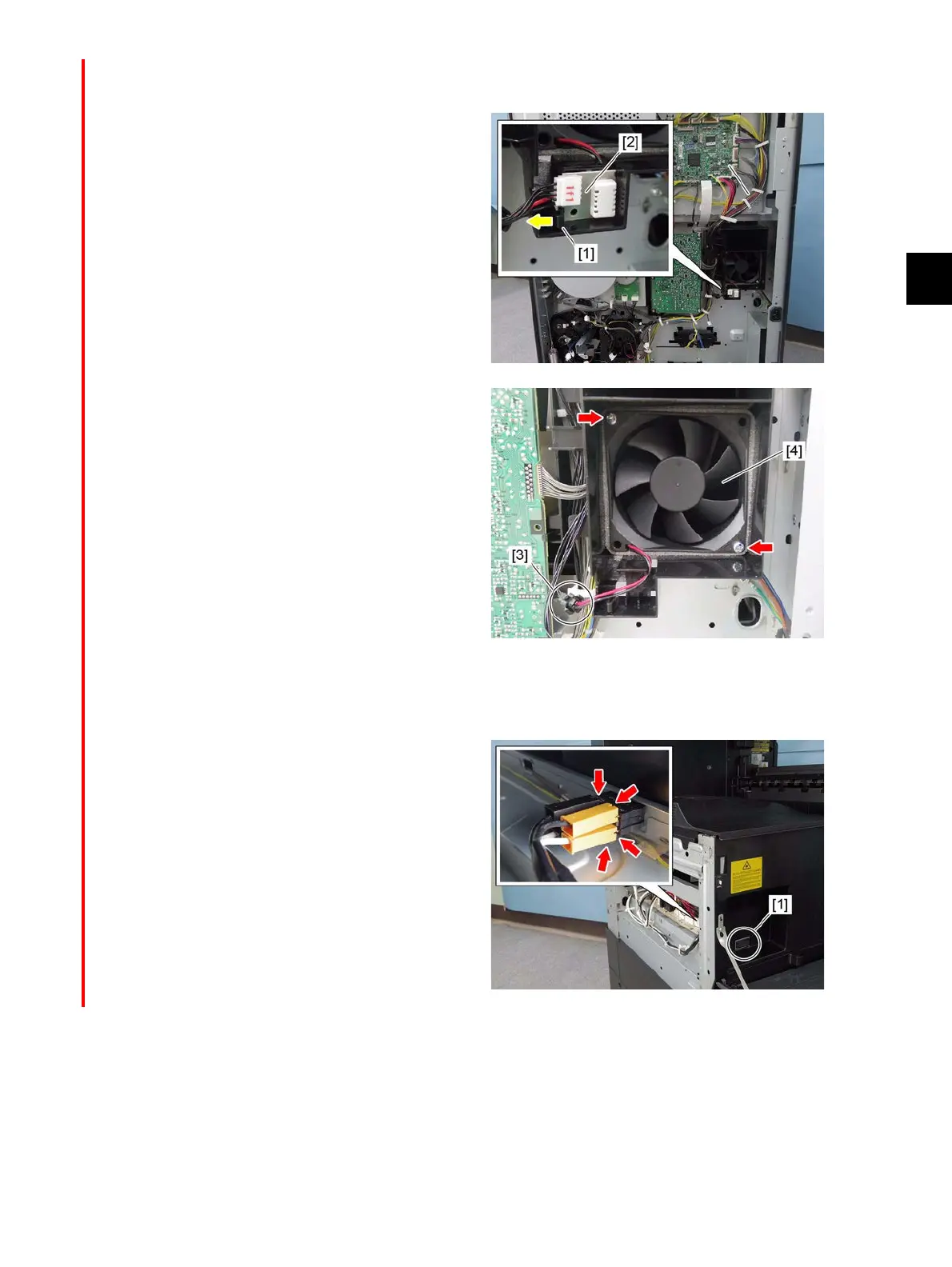

(1) Remove the rear cover.
P. 4-6 "4.1.15 Rear cover"
(2) Release 1 latch [1] and remove the
temperature/humidity sensor [2].
Fig. 4-271
(3) Remove 2 screws and disconnect 1
connector [3], and then take off the switching
regulator cooling fan [4].
Fig. 4-272
Notes:
Be sure to unplug the power cable before
starting this work.
(1) Remove the left cover.
P. 4-1 "4.1.2 Left cover"
(2) Disconnect 4 connectors and remove the
main power switch [1].
Fig. 4-273
To Next Page
