e-STUDIO2008A/2508A/3008A/3508A/4508A/5008A © 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 196

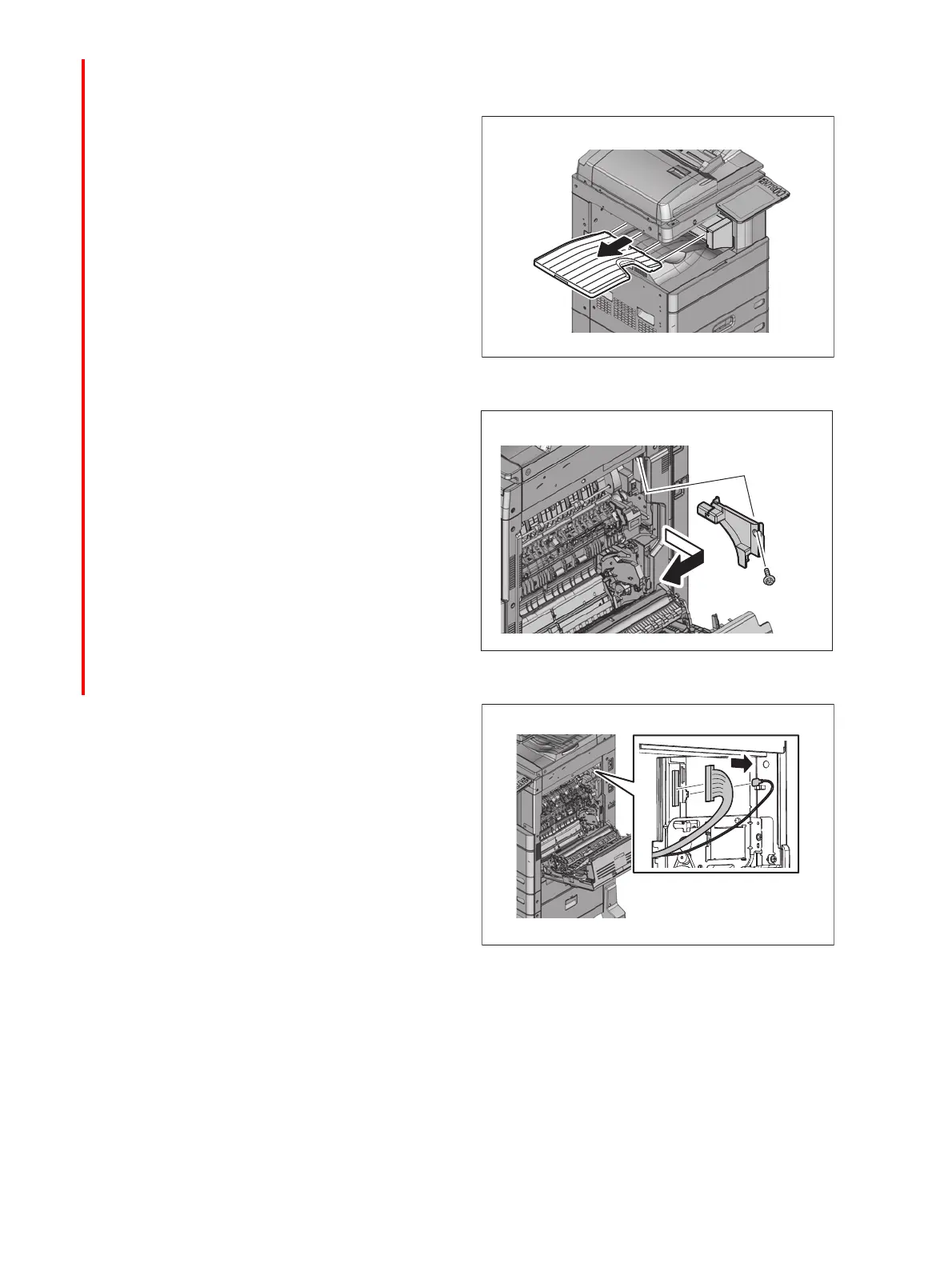

4.13.11 MJ-5014 (Job Separator) <20ppm/25ppm/30ppm>
(1) Press the [Power] button on the control panel
to shut it down.
(2) Turn the main power switch of the equipment
off.
(3) Disconnect the power cable.
(4) Remove the tray.
Fig. 4-537
(5) Open the side cover. Remove 1 screw and
take off the connecting port cover.
Fig. 4-538
(6) Disconnect 2 connectors.
Fig. 4-539
