4.5 Keyboard 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-19
2. Open the display panel and insert a pin into the opening in the battery bay to push the
keyboard free, as indicated in Figure 4.10.

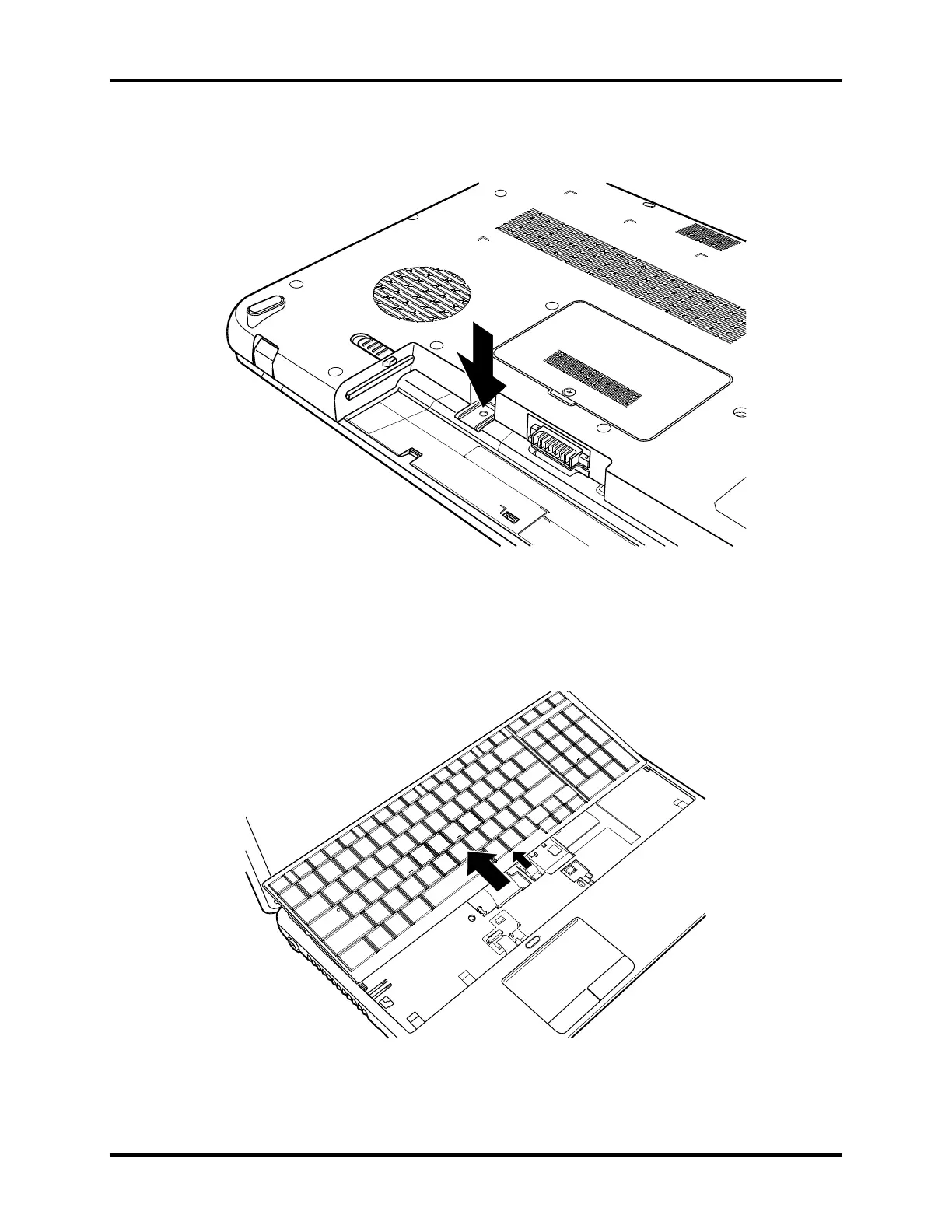

Figure 4.10 Releasing the keyboard
3. Lift up the keyboard and free it from the logic upper assembly. Disconnect the cable on
the back of the keyboard from the motherboard as shown in Figure 4.11. Remove the
keyboard.
Figure 4.11 Disconnecting the cable and removing the keyboard
