Toshiba Satellite A660 Series Maintenance Manual

4 Replacement Procedures 4.29 LVDS Cable
Satellite A660/A665/A660D Maintenance Manual 4-64
4.29 LVDS Cable
Removing the LVDS Cable
Remove the LVDS cable according to the following procedures and Figure 4.51.
1. Disconnect the LVDS cable from the display assembly. Peel off and remove the LVDS
cable from the back of the LCD panel, taking care not to damage the LCD panel.

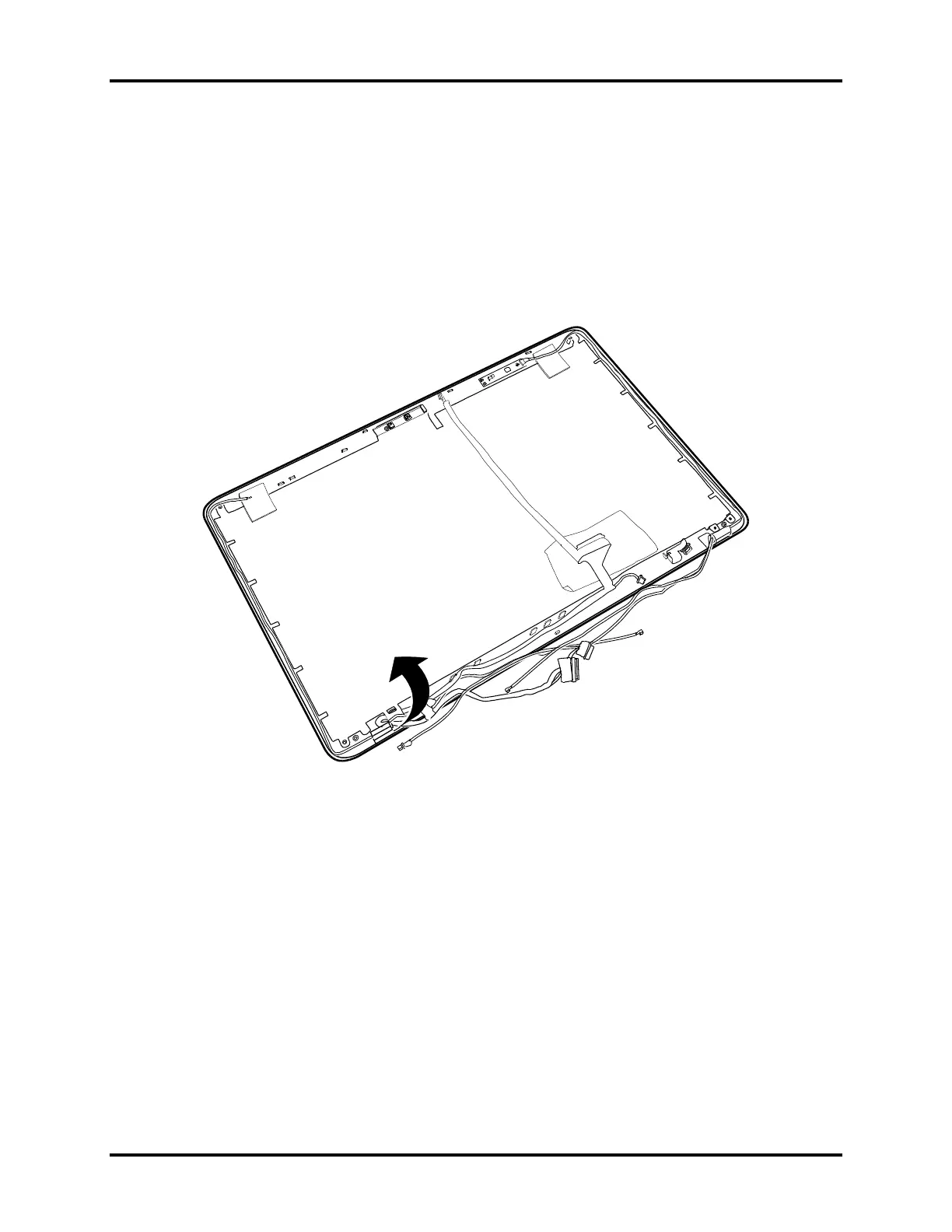

Figure 4.51 Removing the LVDS cable from the LCD panel
Installing the LVDS Cable
Install the LVDS cable according to the following procedures.
1. Place the LVDS cable in the correct position and adhere it to the LCD panel.
2. Connect the LVDS cable to the connector on the LCD panel.

Toshiba Satellite A660 Series Specifications

General

Optical Drive	DVD SuperMulti Drive
Wireless	Wi-Fi 802.11b/g/n
HDMI	Yes
Battery	6-cell Lithium-ion
Processor	Intel Core i5
RAM	4GB or 8GB DDR3
Storage	Up to 640GB HDD
Graphics	NVIDIA GeForce GT 330M
Operating System	Windows 7 Home Premium or Professional
Webcam	Yes, with built-in microphone
Audio	Stereo speakers, Dolby Advanced Audio
LAN	10/100 Ethernet
Card Reader	Multi-Card Reader
USB Ports	3 x USB 2.0
Ports	Microphone input, Headphone output
