4.15 Indicator Board 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-39
4.15 Indicator Board
Removing the Indicator Board
Remove the indicator board according to the following procedures and Figure 4.29.
1. Disconnect the indicator board cable from the motherboard.
2. Lift the indicator board out of the slot and remove it.

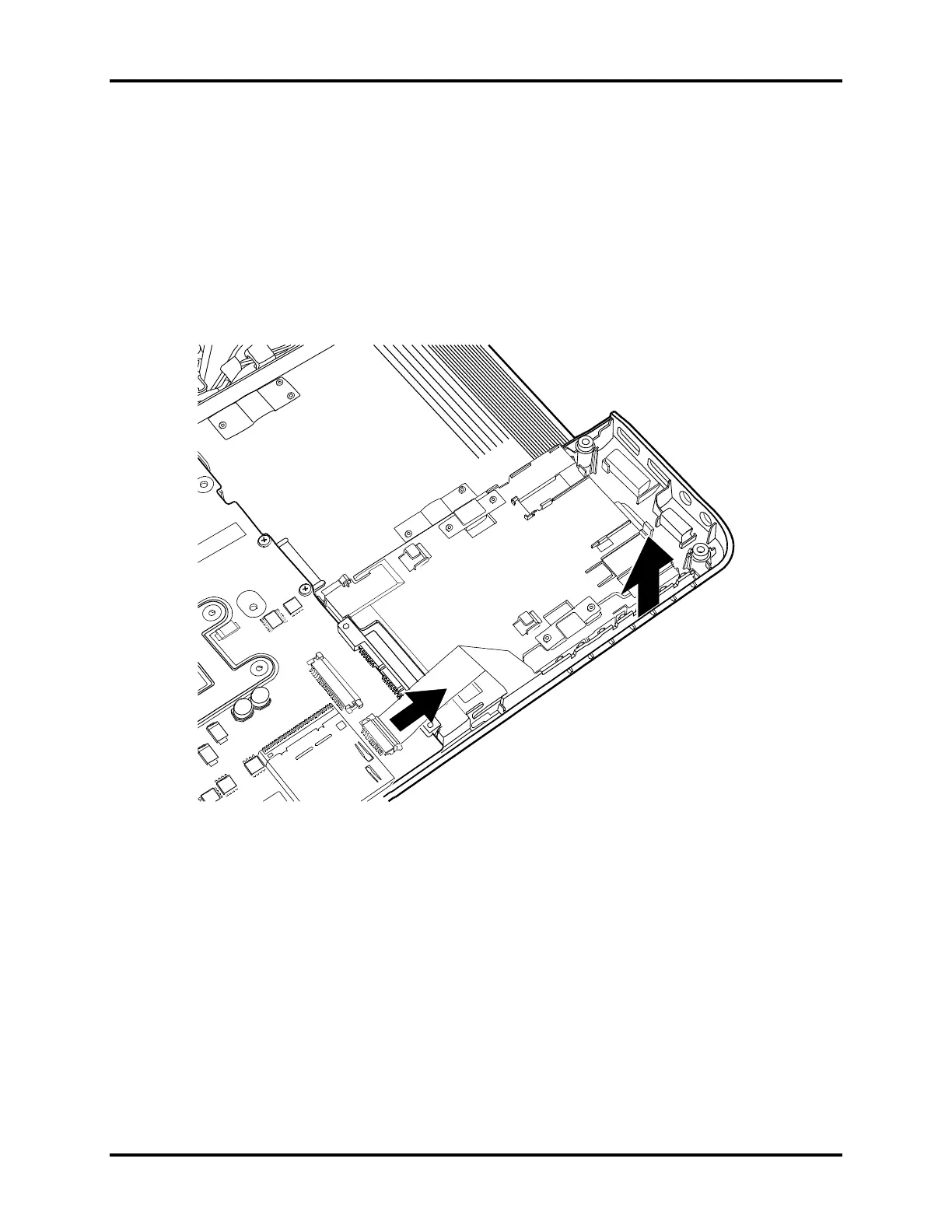

Figure 4.29 Removing the indicator board
Installing the Indicator Board
Install the indicator board according to the following procedures.
1. Place the indicator board in the slot and attach the cable to the motherboard as shown in
Figure 4.29.
