4 Replacement Procedures 4.7 ODD Module (Tray-load)
Satellite A660/A665/A660D Maintenance Manual 4-24
Installing the ODD Module (Tray-load)
Install the ODD module according to the following procedures.
1. Insert the ODD into the ODD bay.
2. Slide the ODD inward until it meets the end.
3. Secure the ODD module with one M2.5x8 screw as indicated in Figure 4.14.
Disassembling the ODD (Tray-load)
NOTE: Do not disassemble the ODD drive when it is working normally. Disassemble or
replace the ODD drive only if it fails.
Disassemble the ODD according to the following procedures and Figure 4.15.
1. Remove the two M2x3 screws securing the ODD bracket.
2. Remove the ODD bracket.

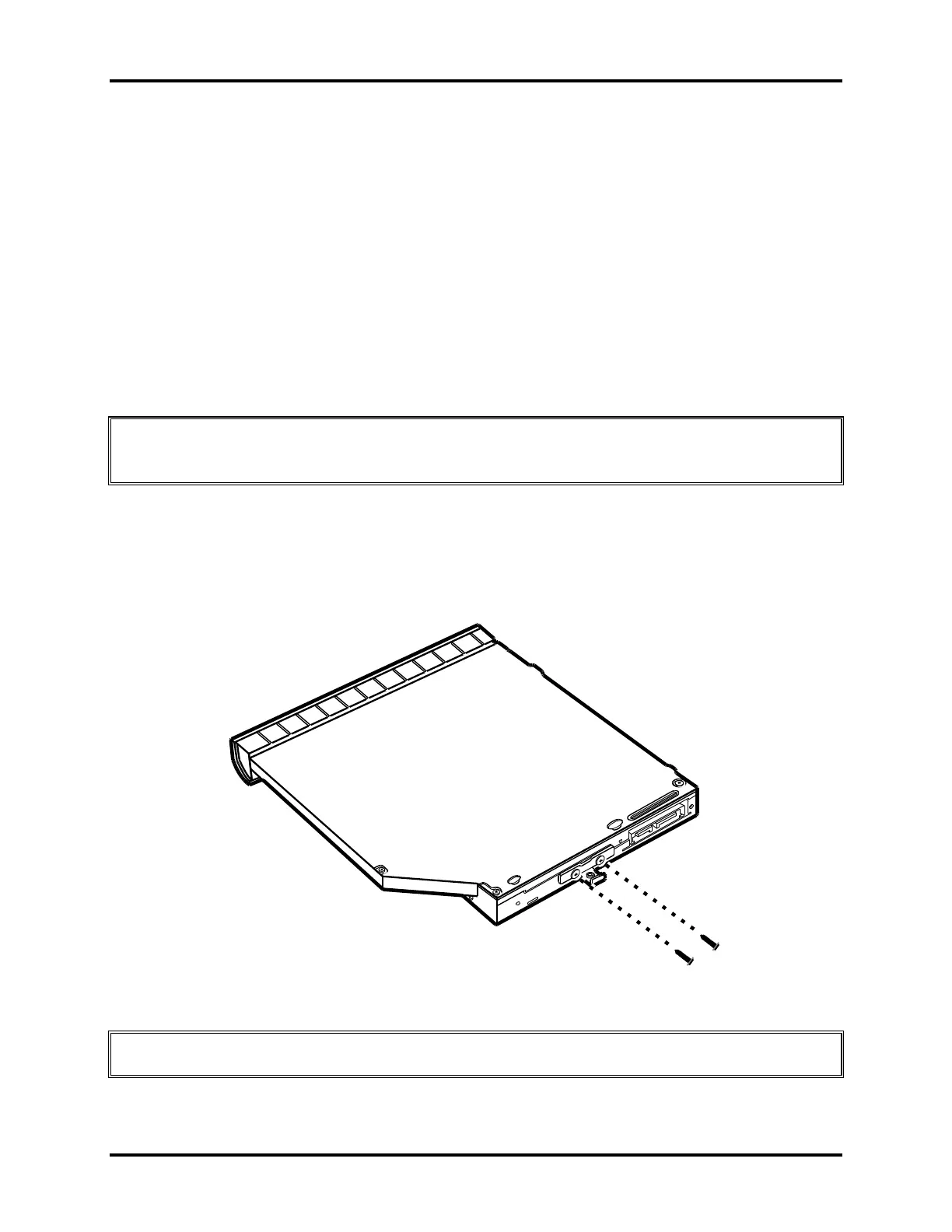

Figure 4.15 Removing the ODD bracket from the ODD
CAUTION: Be careful not to damage the hooks on the inside of the ODD bezel.
