4 Replacement Procedures 4.11 Fingerprint Scanner Bracket
Satellite A660/A665/A660D Maintenance Manual 4-32
4.11 Fingerprint Scanner Bracket
Removing the Fingerprint Scanner Bracket
Remove the fingerprint scanner bracket according to the following procedures and Figures 4.22,
4.23 and 4.24.
1. Turn the logic upper assembly upside down.
2. Use your fingers to press and hold down the wings on either side of the fingerprint
scanner bracket as shown in Figure 4.22.

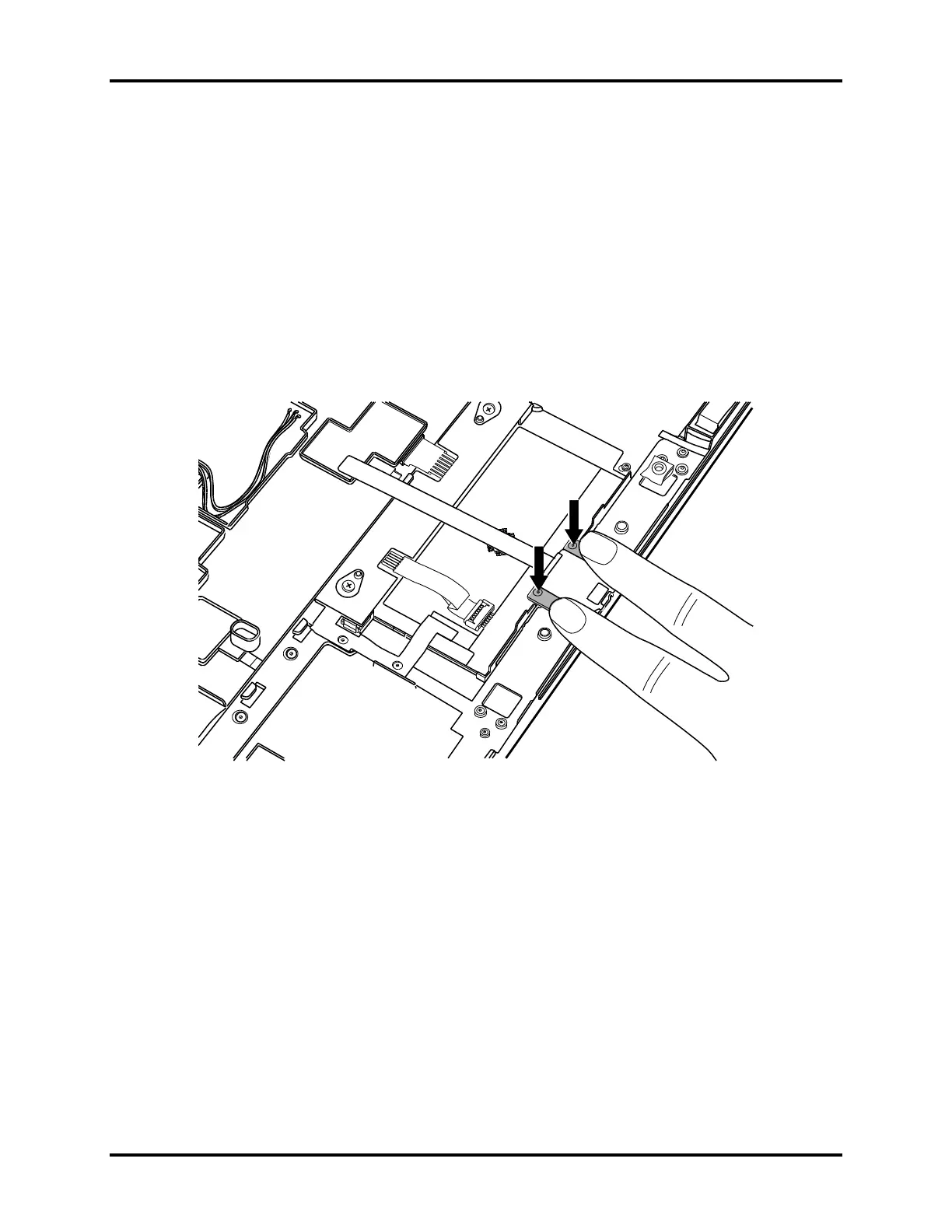

Figure 4.22 Raising the fingerprint scanner bracket from the logic upper assembly
