Toshiba Satellite A660 Series Maintenance Manual

4 Replacement Procedures 4.16 Thermal Fan
Satellite A660/A665/A660D Maintenance Manual 4-40
4.16 Thermal Fan
Removing the Thermal Fan
Remove the thermal fan according to the following procedures and Figure 4.30.
1. Remove the two M2x5 screws from the thermal fan as shown in Figure 4.30.
2. Disconnect the cable from the motherboard.
3. Remove the thermal fan.

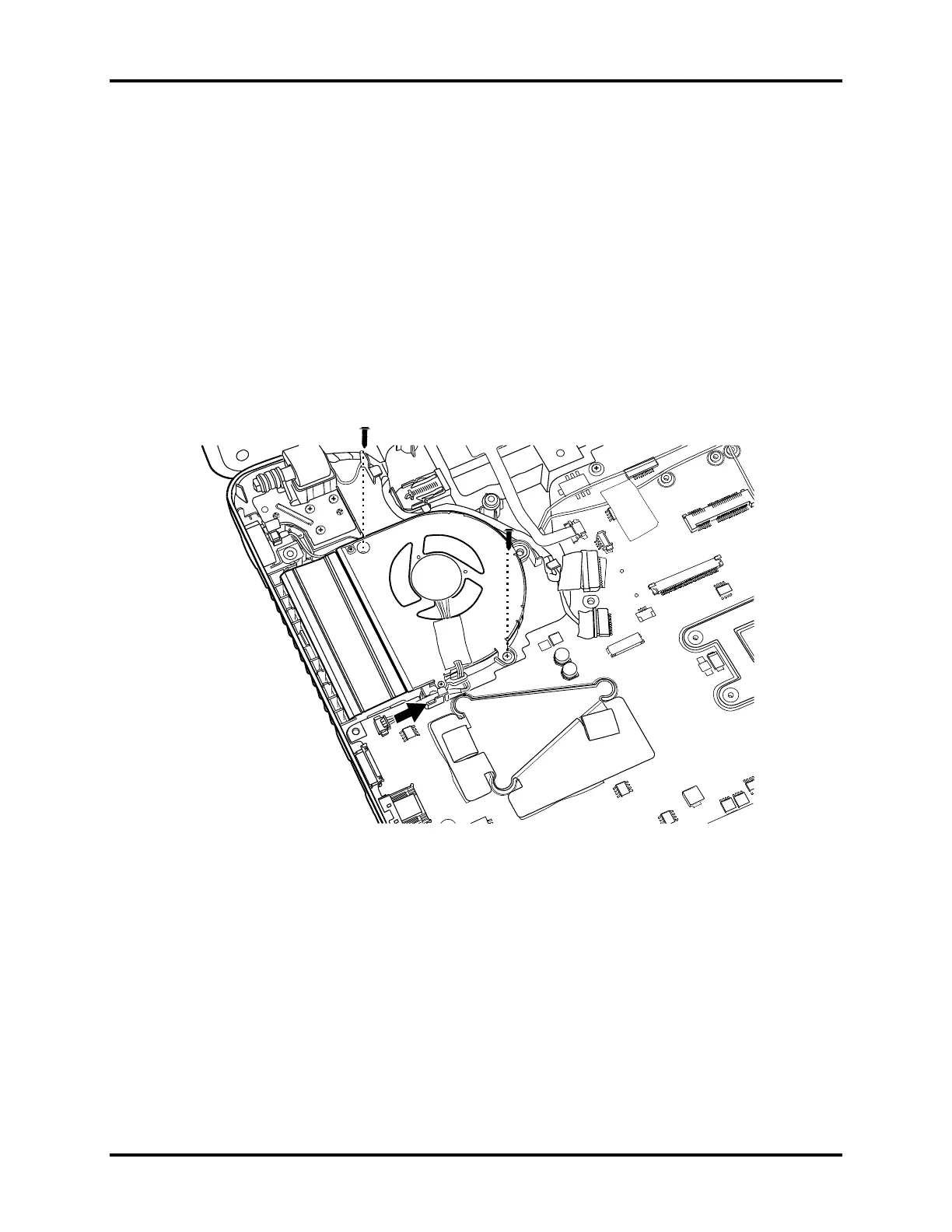

Figure 4.30 Removing the thermal fan
Installing the Thermal Fan
Install the thermal fan according to the following procedures.
1. Seat the thermal fan in the correct position.
2. Secure the thermal fan with two M2x5 screws.
3. Connect the cable to the motherboard.
M2x5*2

Toshiba Satellite A660 Series Specifications

General

Optical Drive	DVD SuperMulti Drive
Wireless	Wi-Fi 802.11b/g/n
HDMI	Yes
Battery	6-cell Lithium-ion
Processor	Intel Core i5
RAM	4GB or 8GB DDR3
Storage	Up to 640GB HDD
Graphics	NVIDIA GeForce GT 330M
Operating System	Windows 7 Home Premium or Professional
Webcam	Yes, with built-in microphone
Audio	Stereo speakers, Dolby Advanced Audio
LAN	10/100 Ethernet
Card Reader	Multi-Card Reader
USB Ports	3 x USB 2.0
Ports	Microphone input, Headphone output
