4.30 TV Tuner Antenna 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-65
4.30 TV Tuner Antenna
Removing the TV Tuner Antenna
Remove the TV tuner antenna according to the following procedures and Figure 4.52.
1. Pull the TV tuner antenna cable from the routing channel and remove the connector from
the bracket and remove the TV tuner antenna.

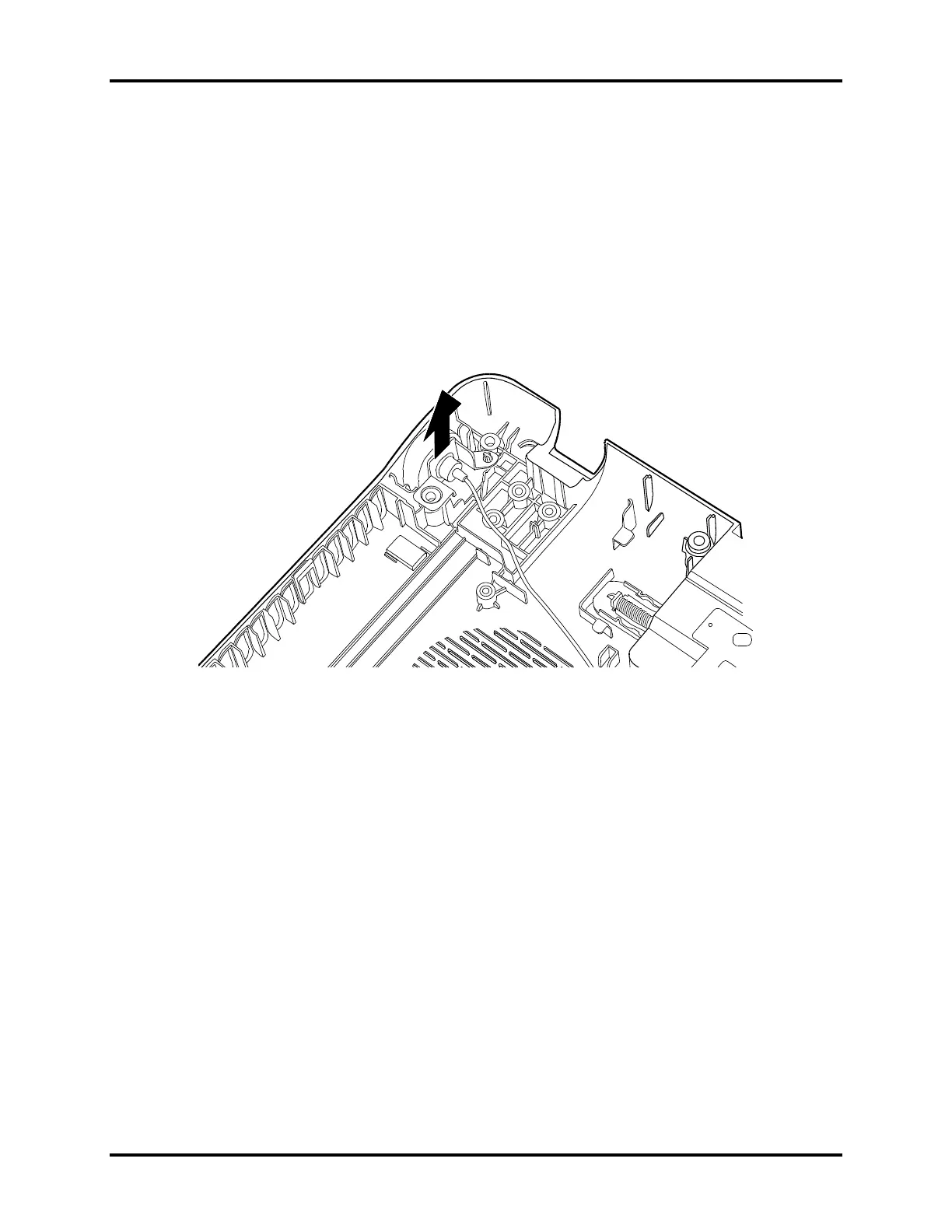

Figure 4.52 Removing the TV tuner antenna
Installing the TV Tuner Antenna
Install the TV tuner antenna according to the following procedure.
1. Place the TV tuner antenna connector in the bracket and push it down. Route the TV tuner
antenna cable in the routing channels.
