3. Raise the motherboard from the right edge and slide it out, taking care not to damage the
connector ports.

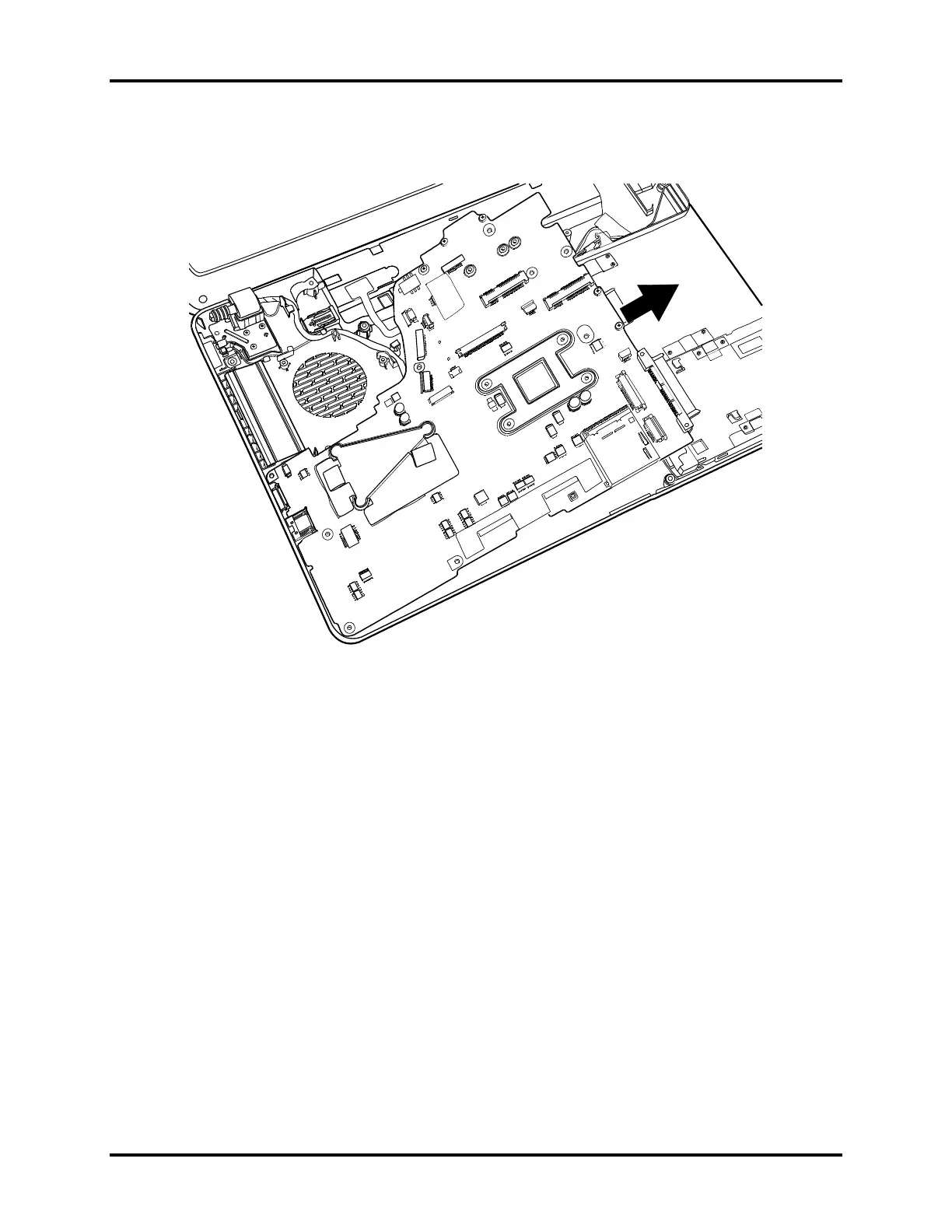

Figure 4.33 Removing the discreet motherboard from the system
Installing the Motherboard
Install the motherboard according to the following procedures.
1. Seat the motherboard in the correct position.
2. Secure the motherboard with one M2.5x5 screw as shown in Figure 4.32.
3. Connect the power membrane, IR sensor and the LVDS cables to the motherboard.
4. Slot the DC in cable into the connector port slot and press the wires into the channels on
the logic lower assembly.

Toshiba Satellite A660 Series Specifications

General

Optical Drive	DVD SuperMulti Drive
Wireless	Wi-Fi 802.11b/g/n
HDMI	Yes
Battery	6-cell Lithium-ion
Processor	Intel Core i5
RAM	4GB or 8GB DDR3
Storage	Up to 640GB HDD
Graphics	NVIDIA GeForce GT 330M
Operating System	Windows 7 Home Premium or Professional
Webcam	Yes, with built-in microphone
Audio	Stereo speakers, Dolby Advanced Audio
LAN	10/100 Ethernet
Card Reader	Multi-Card Reader
USB Ports	3 x USB 2.0
Ports	Microphone input, Headphone output
