4.27 Inner IR Sensor 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-61
4.27 Inner IR Sensor
Removing the Inner IR Sensor
Remove the inner IR sensor according to the following procedures and Figure 4.49.
1. Disconnect the cable from the inner IR sensor.
2. Peel the inner IR sensor upward from the bottom edge and remove it from the display
assembly.

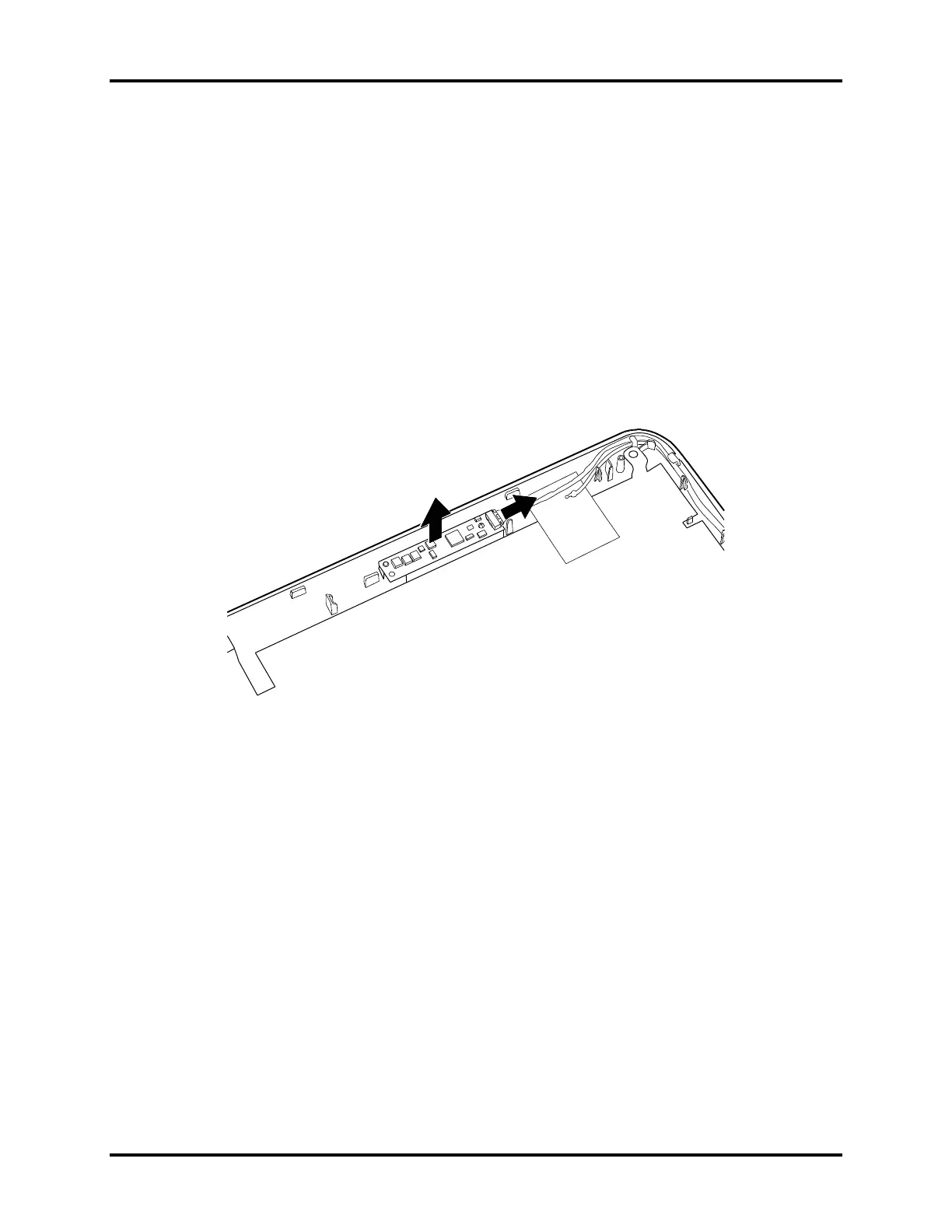

Figure 4.49 Removing the inner IR sensor from the display assembly
Installing the Inner IR Sensor
Install the inner IR sensor according to the following procedures.
1. Seat the inner IR sensor in the correct position and secure it to the display assembly.
2. Connect the cable to the inner IR sensor.
