4 Replacement Procedures 4.24 LCD Panel
Satellite A660/A665/A660D Maintenance Manual 4-56
4.24 LCD Panel
Removing the LCD Panel
Remove the LCD panel according to the following procedures and Figure 4.44, 4.45 and 4.46.
1. Remove the four M2.5x5 screws securing the LCD panel in the order indicated in Figure
4.44.

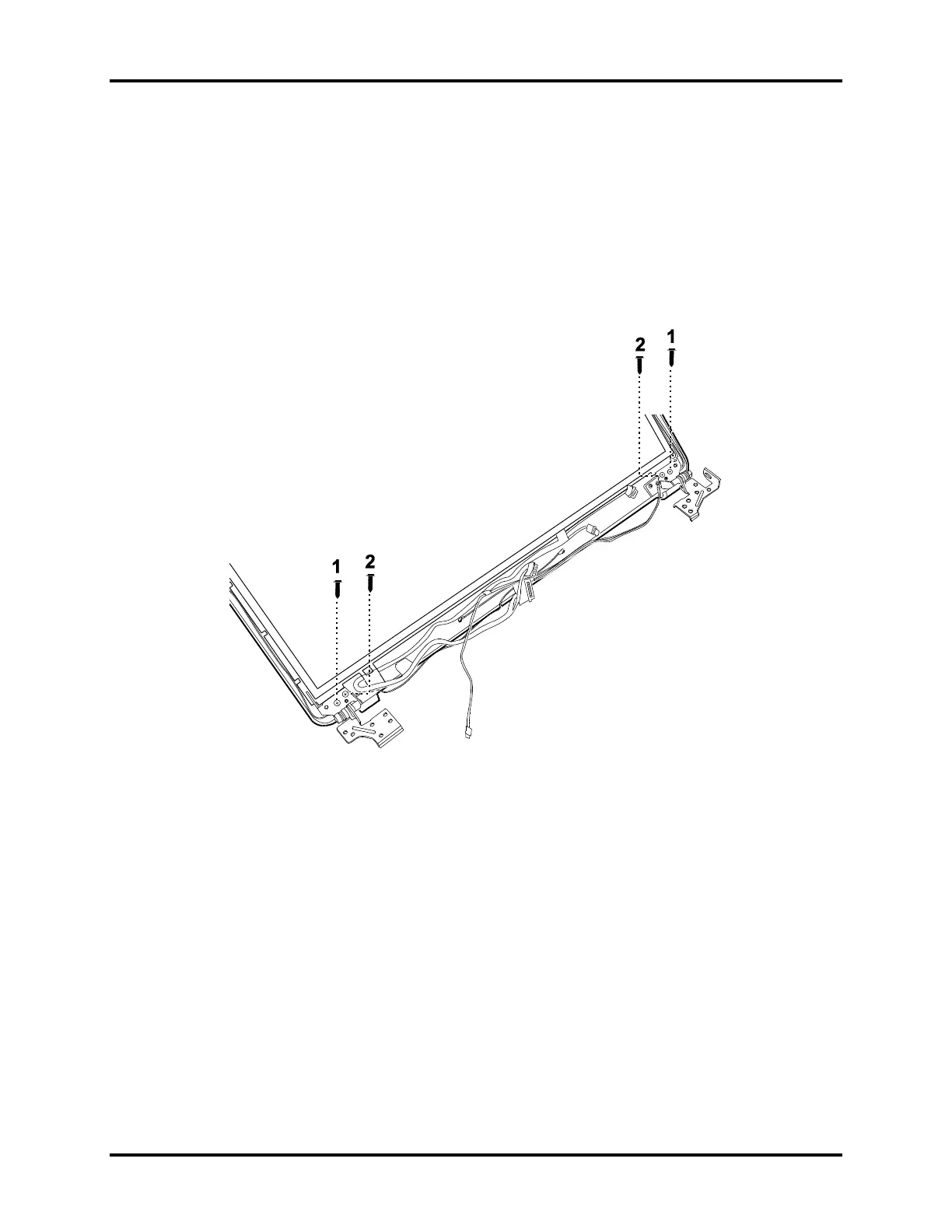

Figure 4.44 Removing the four screws securing the LCD panel
M2.5x5*2
M2.5x5*2
