4.25 LCD Panel Hinges 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-59
4.25 LCD Panel Hinges
Removing the LCD Panel Hinges
Remove the LCD panel hinges according to the following procedures and Figure 4.47.
1. Remove the six M2x3 screws securing the LCD panel hinges in the order indicated in
Figure 4.47.
2. Remove the LCD panel hinges.

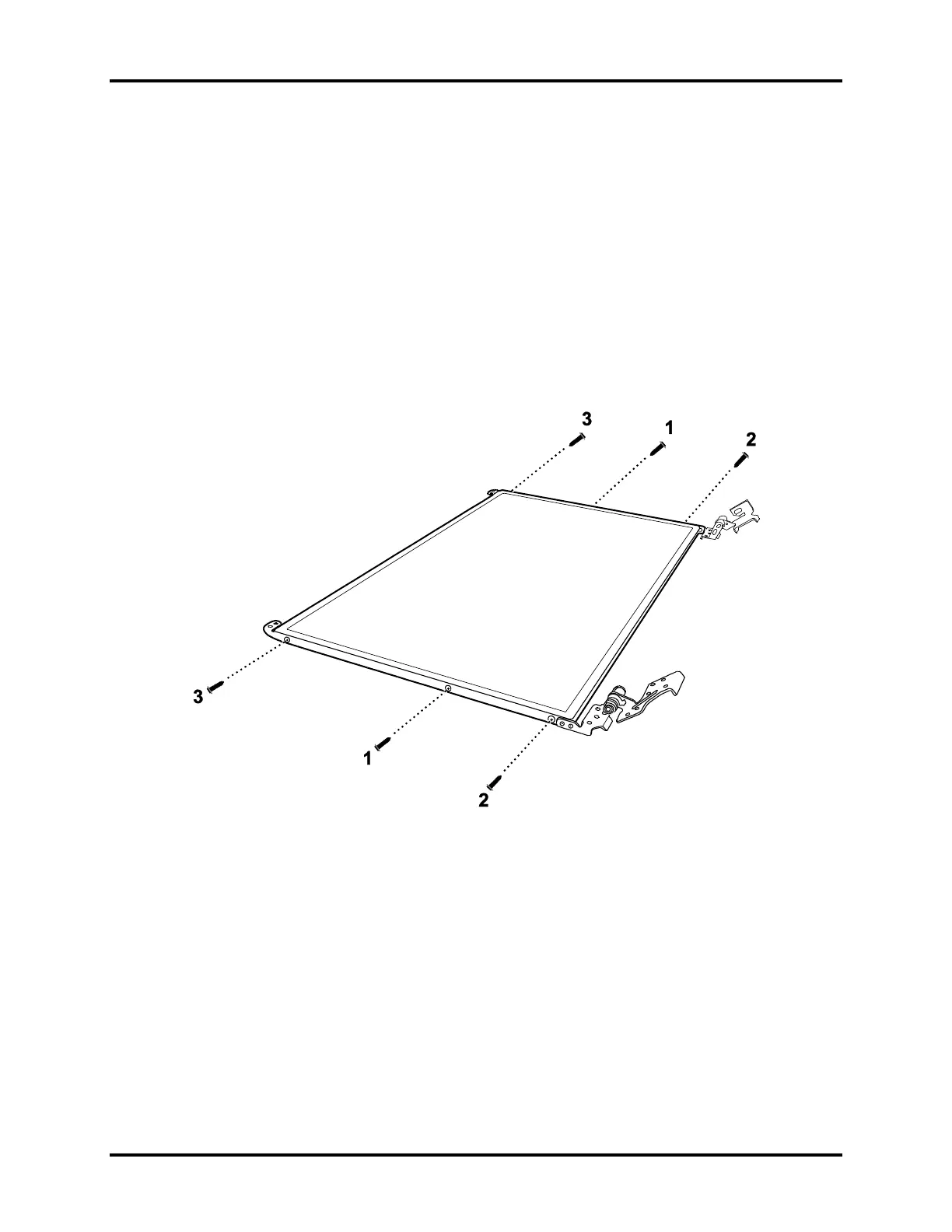

Figure 4.47 Removing the LCD panel hinges from the LCD Panel
Installing the LCD Panel Hinges
Install the LCD panel hinges according to the following procedures.
1. Place the LCD panel hinges in the correct position on the LCD panel and secure with six
M2x3 screws according to the number sequence sealed on the hinges.
