4.11 Fingerprint Scanner Bracket 4 Replacement Procedures
Satellite A660/A665/A660D Maintenance Manual 4-33
3. While still holding down the wings, grasp the fingerprint scanner bracket by the top and
bottom edge and work it in the direction indicated in Figure 4.23 until the bracket
becomes loose.

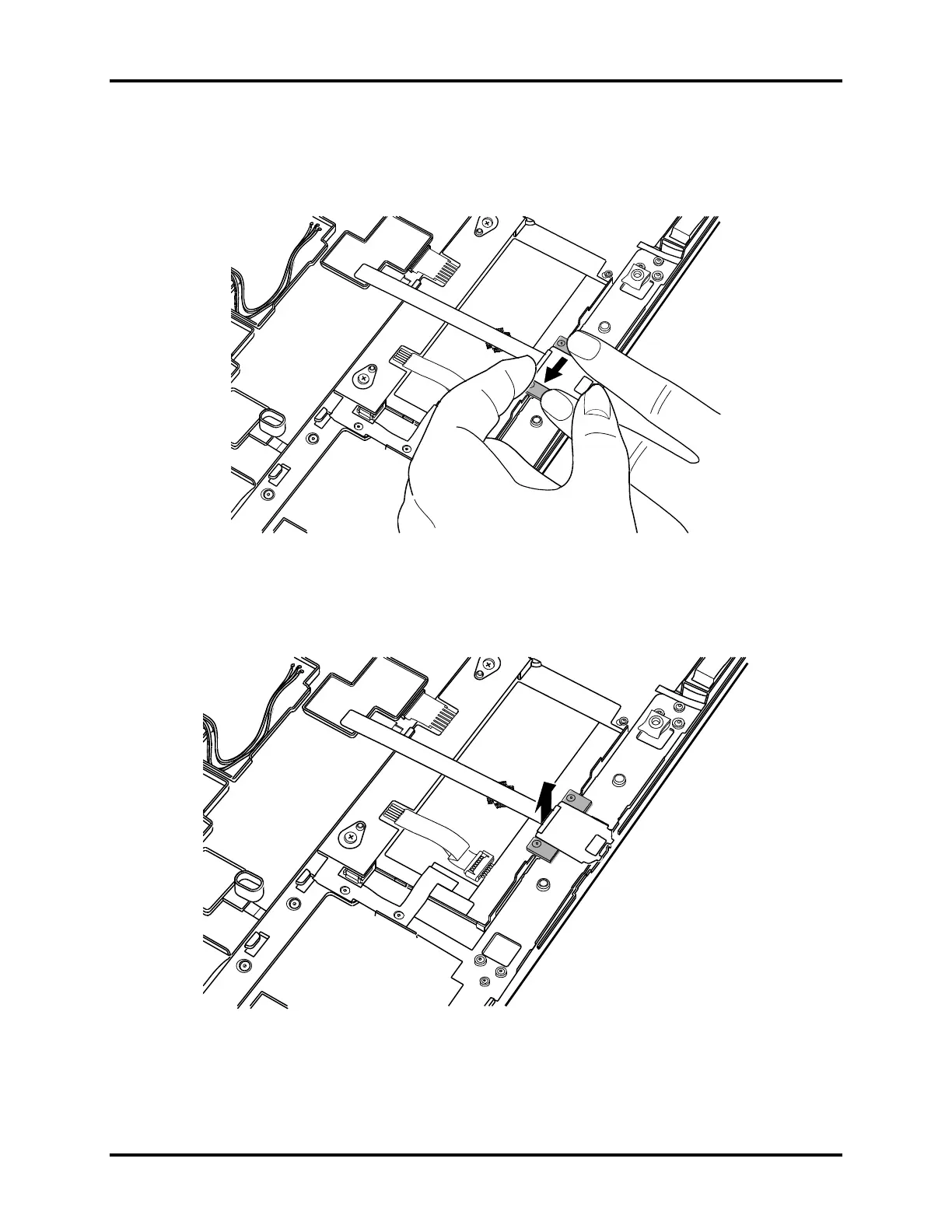

Figure 4.23 Working the fingerprint scanner bracket loose
4. Lift the edge of the fingerprint scanner bracket as shown in Figure 4.24, and remove it
from the system.
Figure 4.24 Removing the fingerprint scanner bracket from the logic upper assembly
