U/Rqtv<"
Configur
e TCP/IP source port contained in the rule when TCP/UDP is
selected from the pull-down list of IP Protocol.
F/Rqtv<"
Configure TCP/IP destination port contained in the rule when
TCP/UDP is selected from the pull-down list of IP Protocol.
FUER<"
Enter the DSCP information contained in the rule.
KR"VqU<"
Enter the IP-ToS contained in the rule.
KR"Rtg<"
Enter the IP Precedence contained in the rule.
Vkog/Tcpig<"
Select the time-range for the rule to take effect.
340408" Eqodkpgf"CEN"
Combined ACLs analyze and process data packets based on a series of match conditions, which
can be the source MAC addresses, destination MAC addresses source IP addresses, destination
IP addresses and other information of this sort carried in the packets.
On this page you can create Combined ACL rules.
Choose the menu"CEN→CEN"Eqphki→Eqodkpgf"CEN to load the following page.

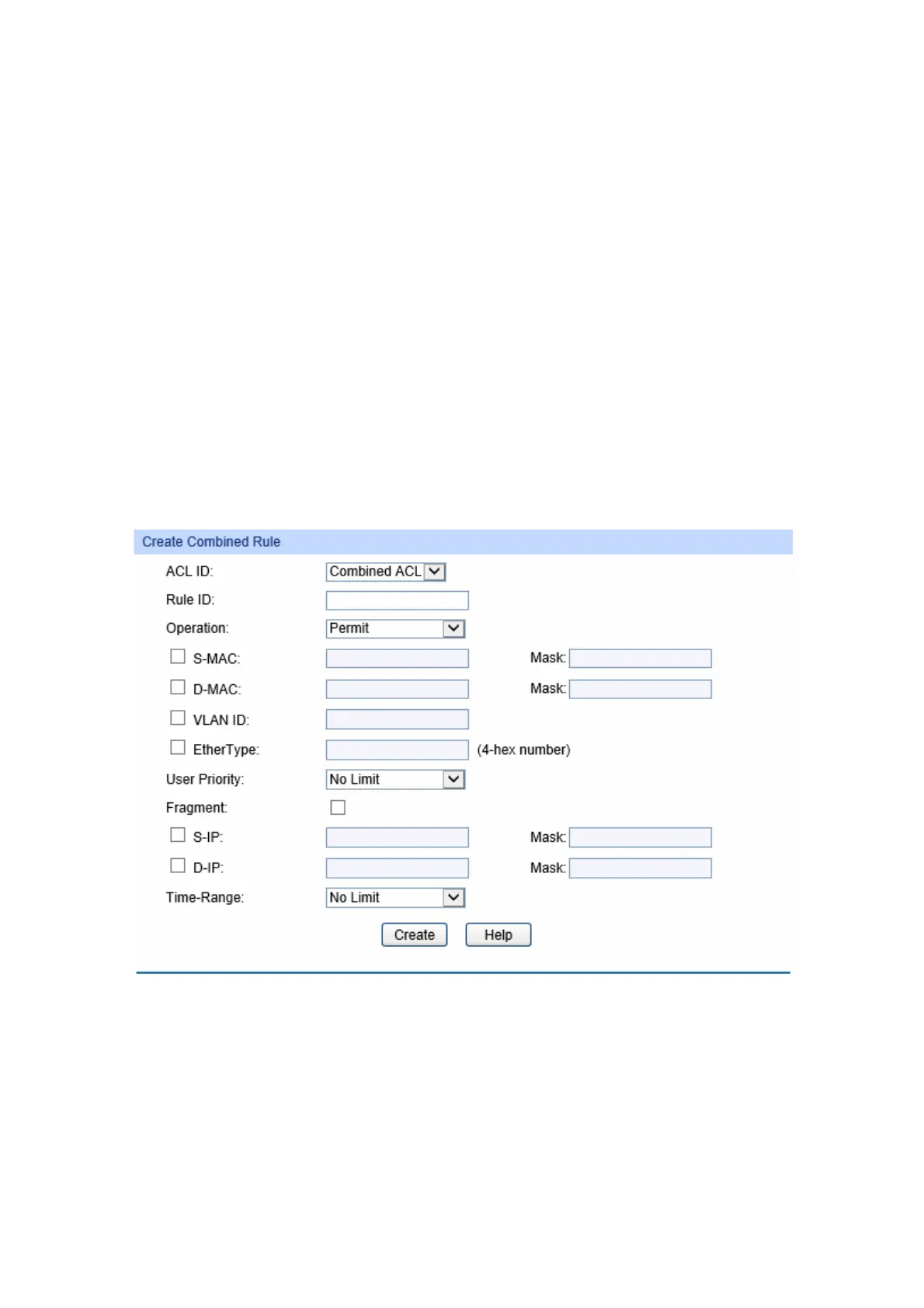

Figure 12-9 Creat Combined ACL
The following entries are displayed on this screen:
" Etgcvg"eqodkpgf"Twng"
CEN"KF<"
Select the desired Combined ACL for configuration.
Twng"KF<"
Enter the rule ID.
188
