1.4 Overview of the complete system

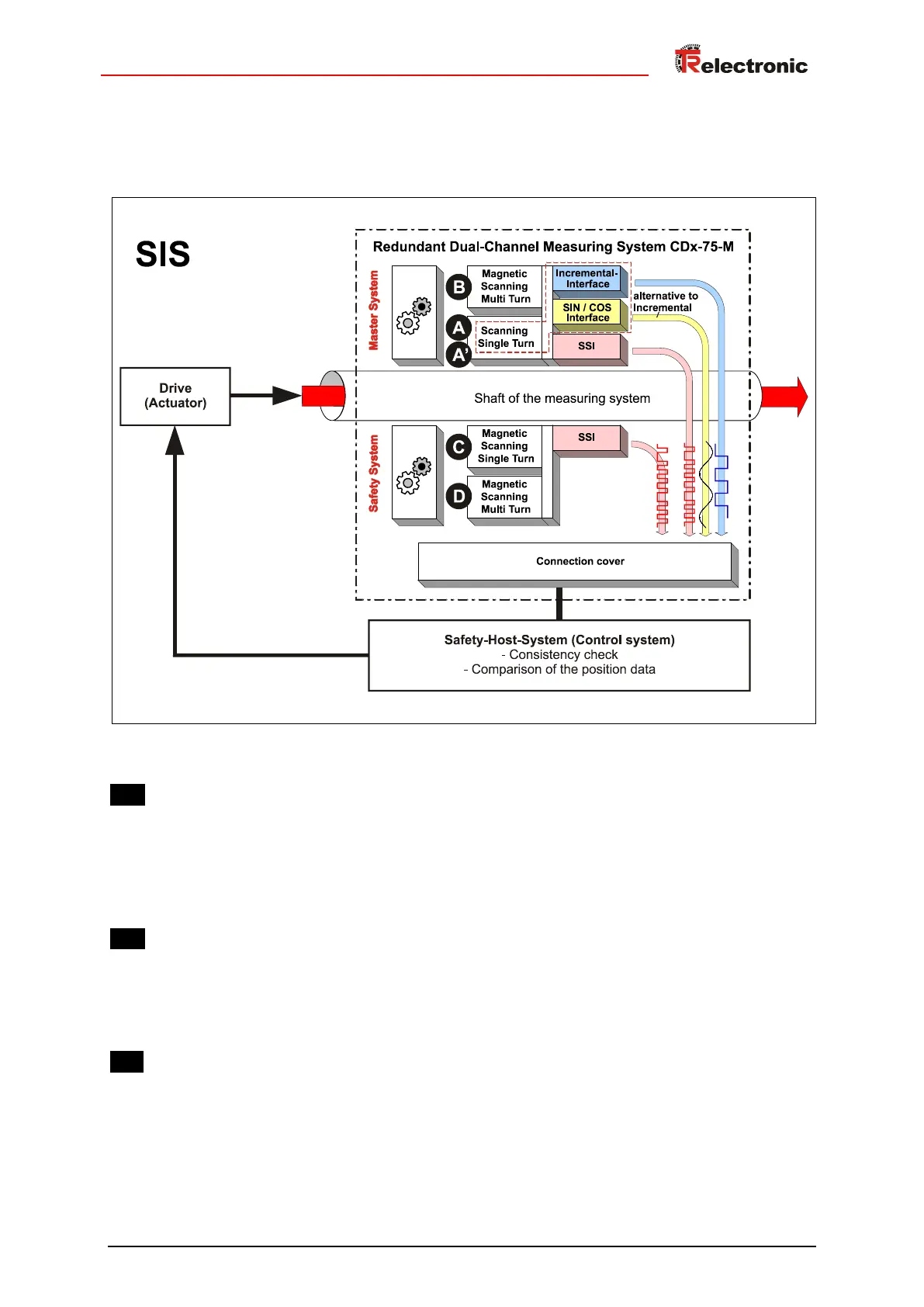

Figure 1: System diagram
A
Variant 1: Master system, Single-Turn
● Optical detection of number of steps/revolution
● max. 8192 steps/revolution, 13 bit accuracy
● Synchronous-Serial-Interface (SSI)
● Incremental signals for position feedback, SIN/COS signals also optionally possible
A’
Variant 2: Master system, Single-Turn
● Magnetic detection of the number of steps/revolution
● max. 8192 steps/revolution, 8 bit accuracy
● Synchronous-Serial-Interface (SSI)
B
Master system, Multi-Turn
● Magnetic detection of the number of revolutions
● max. 4096 revolutions
● Synchronous-Serial-Interface (SSI)
