TR-Electronic CDH 75 M - Start-Up Torque of the Shaft, in Dependence of the Temperature

Printed in the Federal Republic of Germany  TR-Electronic GmbH 2009, All Rights Reserved
12/13/2018 TR - ECE - BA - DGB - 0070 - 17 Page 79 of 108

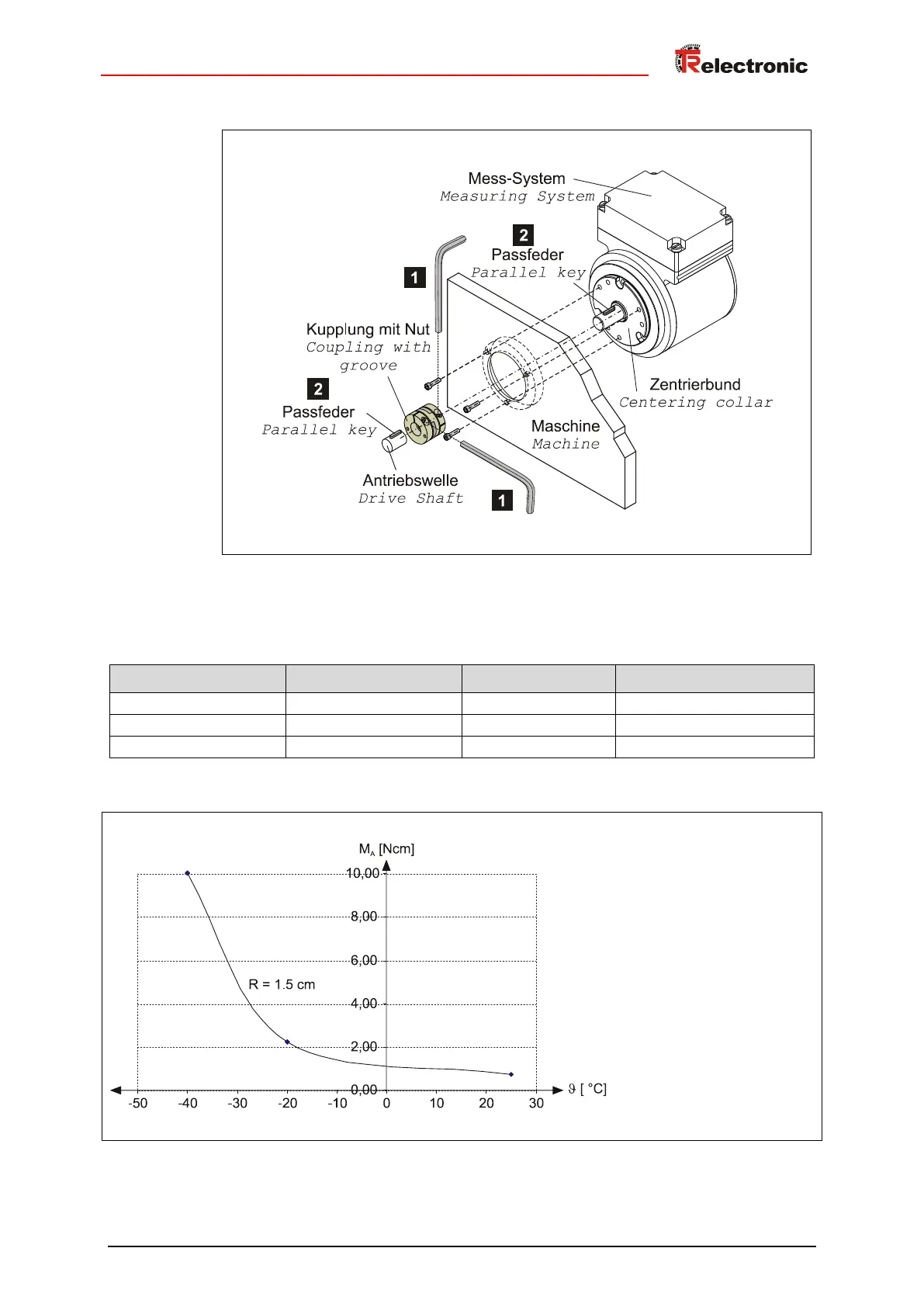

Figure 2: Flange installation
4.1.2 Start-up torque of the shaft, in dependence of the temperature
Temperature [°C] Radius [cm] Force [N] Start-up torque [Ncm]
25
1.5
0.5
0.75
-20
1.5
1.5
2.25
-40
1.5
6.7
10.05
M
A
: Start-up torque
υ: Temperature
R: Radius
Figure 3: Start-up torque
