5.6.1 Signal characteristics of incremental interface
When passing through a revolution, a corresponding number of pulses are output. To
evaluate the counting direction, a 2nd signal sequence with a 90° phase offset is
output for the control.
The incremental resolution of the measuring system is 4096 pulses / revolution in the
standard version. No zero pulse is present.

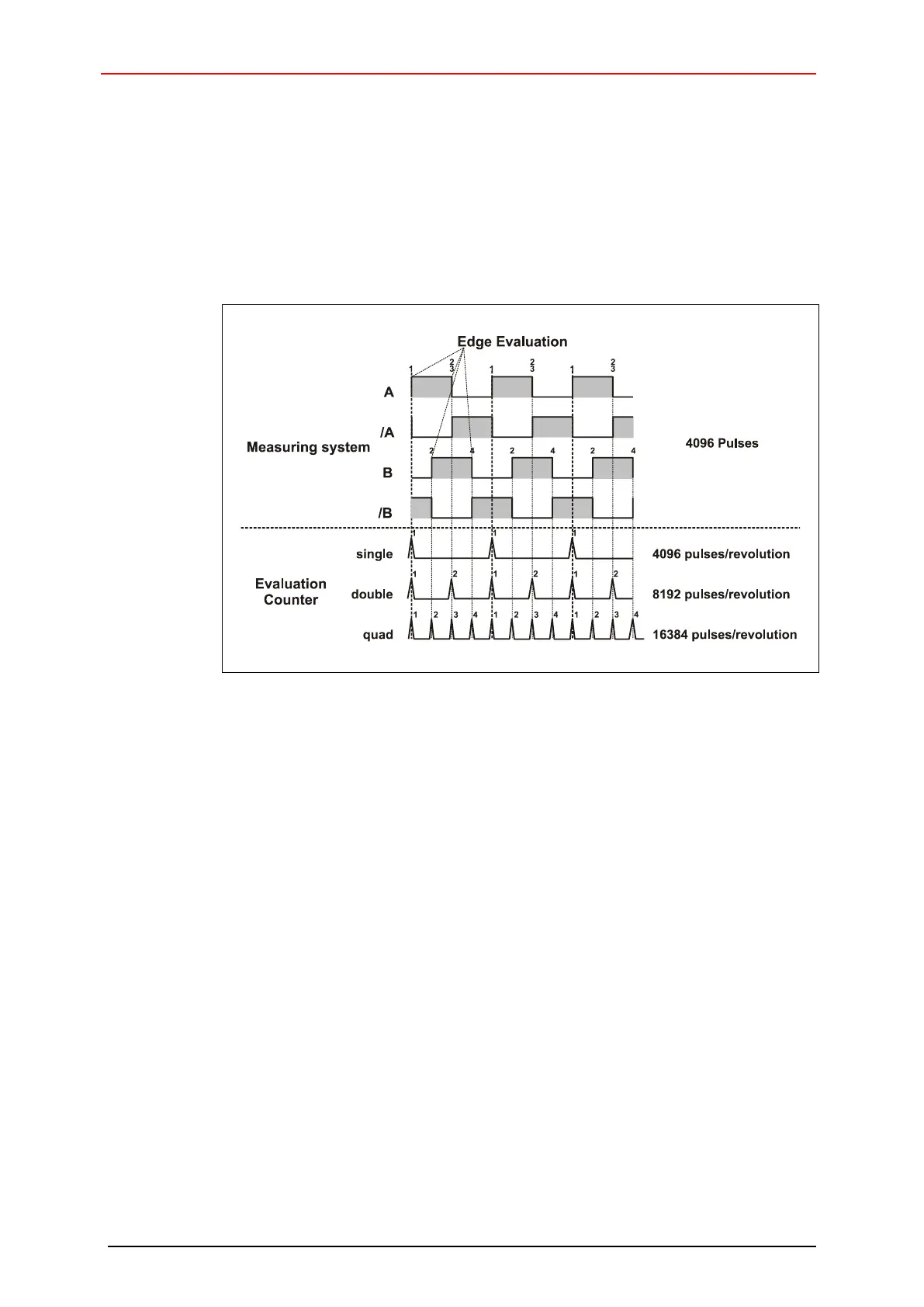

Figure 11: Counter evaluation
