5.3 Connection
Connection data of connector block X1, X2:
– Type with slider
– Grid dimension: 2.5 mm
– Conductor cross-section of stranded conductor: 20-28 AWG
– Nominal current: 6 A
Handling:
– Bring slider in position “1”
– Lead in stranded conductor
– Bring slider in position “2” and lock
Assignment of the connector blocks:

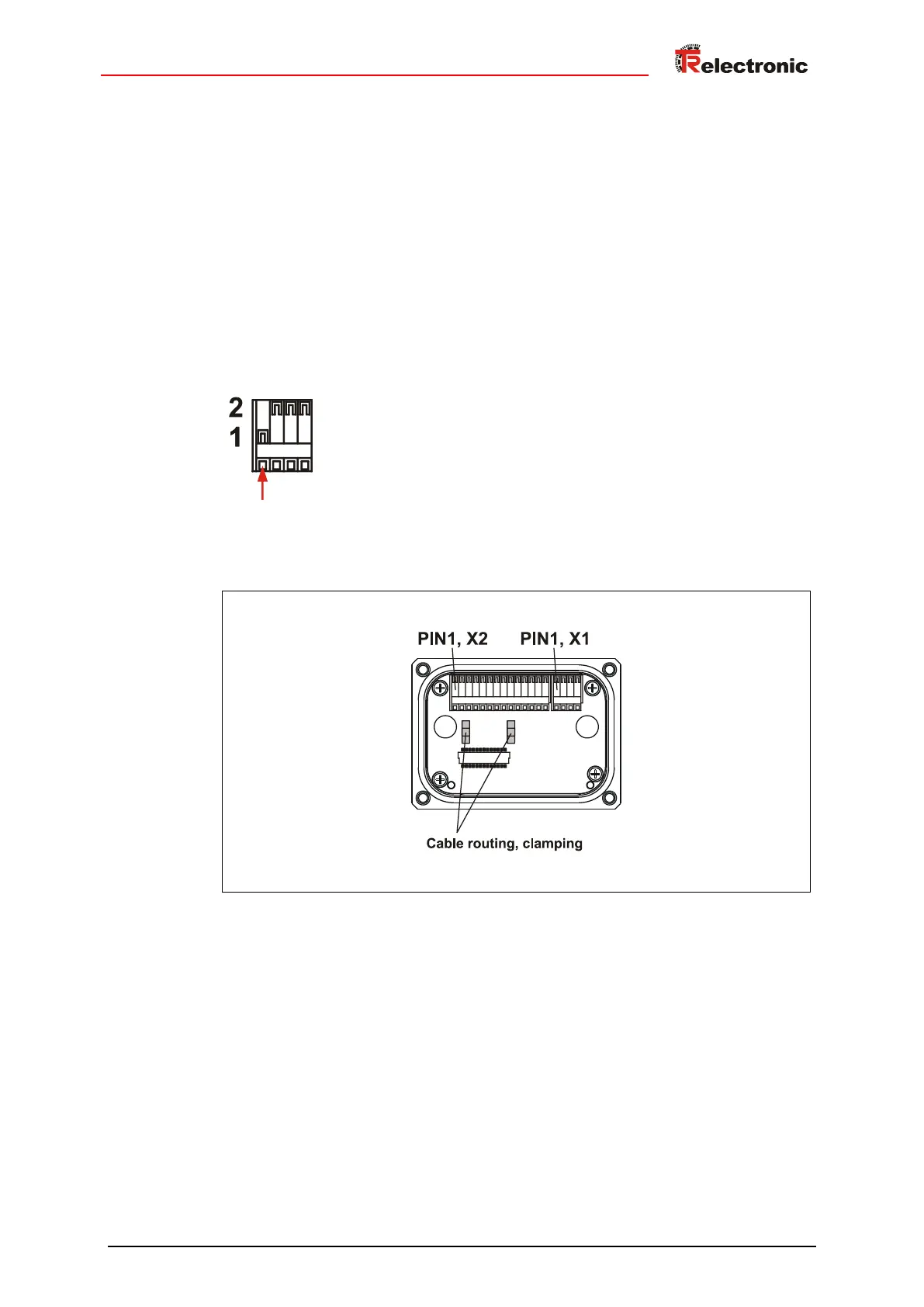

Figure 9: Opened connection cover
