Installation / Preparation for Commissioning
TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany
Page 86 of 108 TR - ECE - BA - DGB - 0070 - 17 12/13/2018

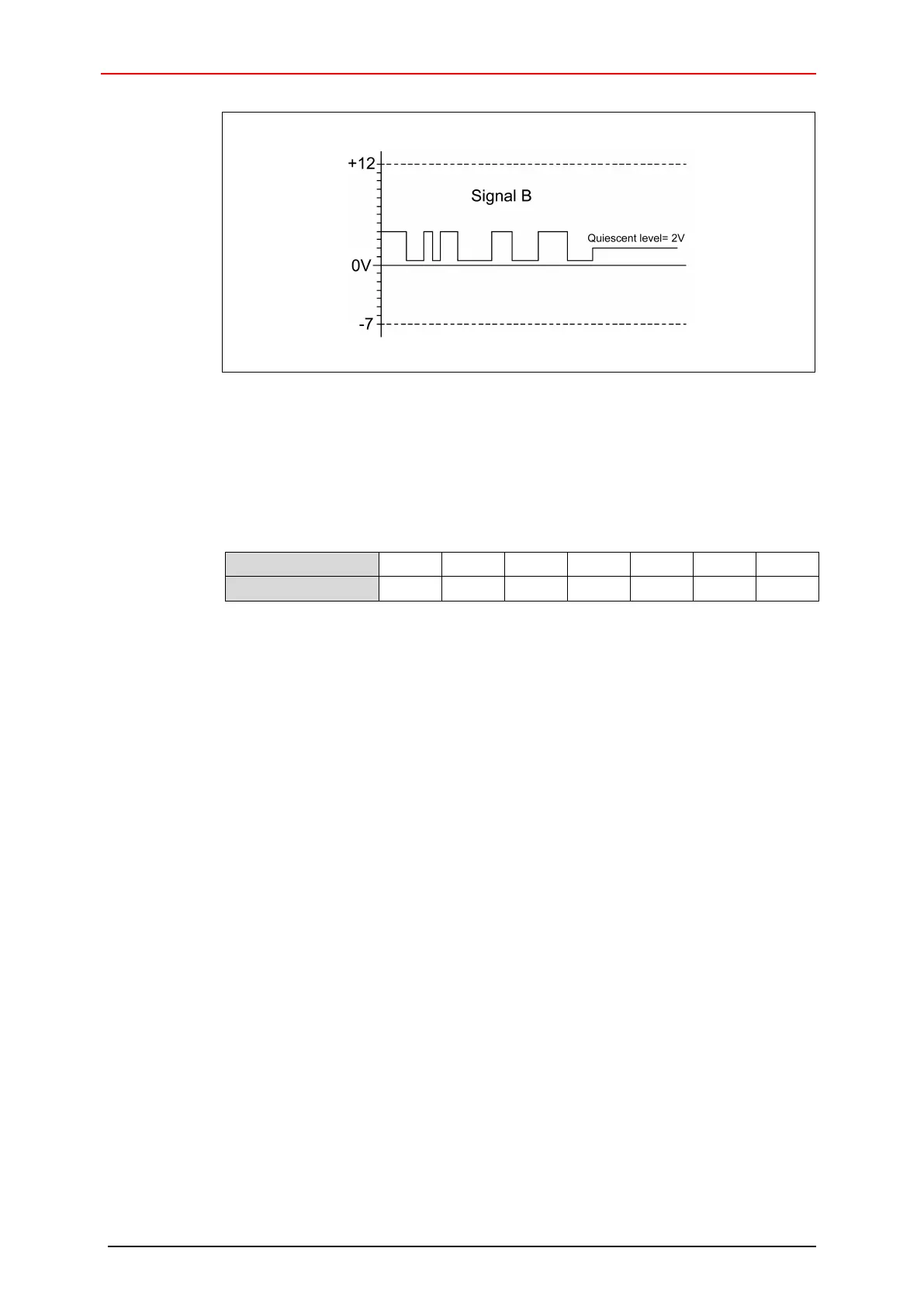

The maximum cable length depends on the SSI clock frequency and cable quality and
should be conditioned to the following diagram.
Pay attention, that per meter cable with an additional delay-time t
D
(Data+/Data–) of
approx. 6ns must be calculated.
SSI clock frequency [kHz]
810 750 570 360 220 120 100
Line length [m]
approx.
12.5
approx.
25
approx.
50
approx.
100
approx.
200
approx.
400
approx.
500
