4.2.2 Dowel pin
Simultaneous rotation of the measuring system, caused by the developing torque, is
prevented by a dowel pin on the machine side. The measuring system has a groove
insertion 4K7, 6mm deep on the back, for mounting the dowel pin. The dowel pin must
extend at least 4 mm into the groove insertion.

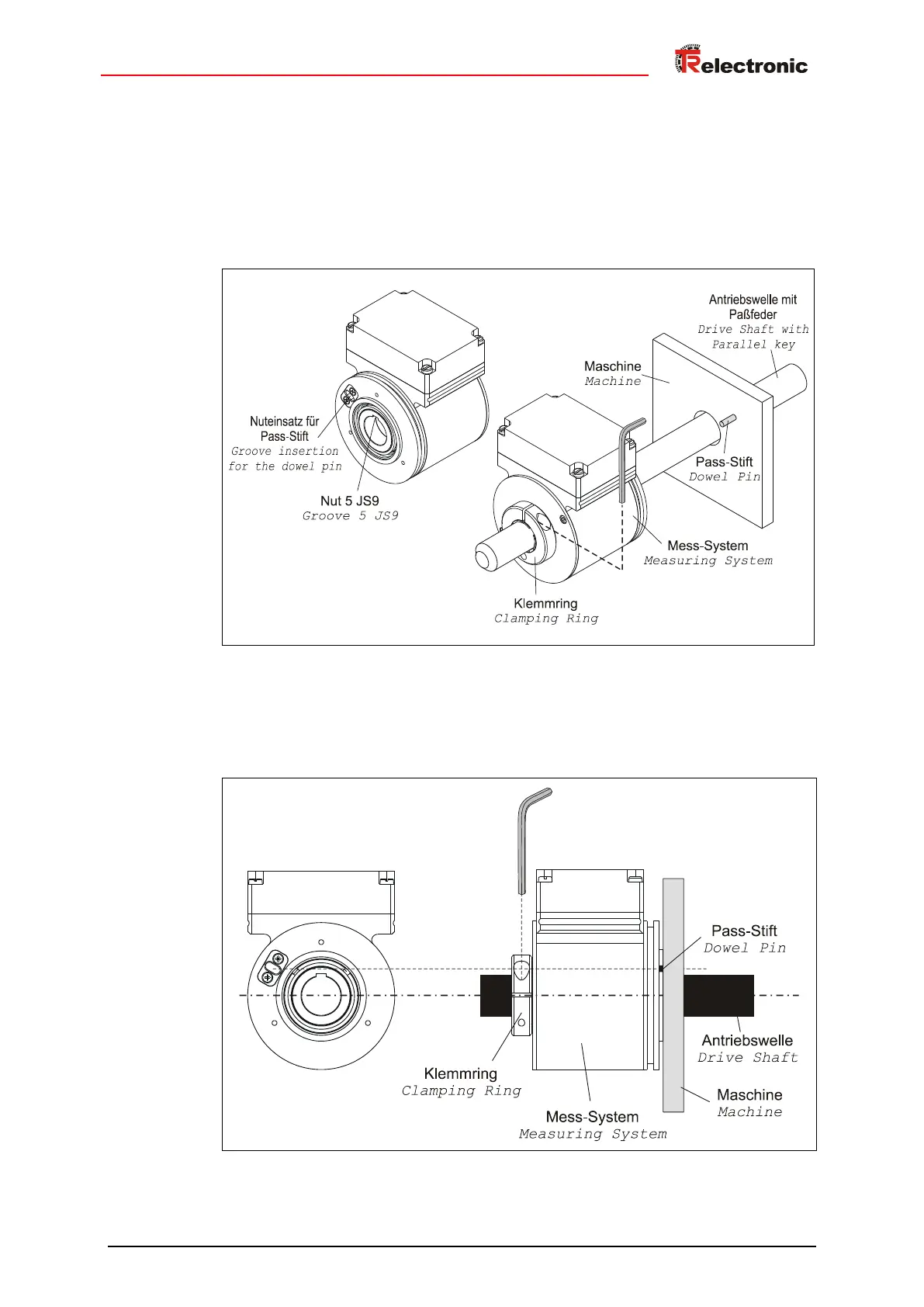

Figure 7: Preventing simultaneous rotation using a dowel pin
When pushing on the measuring system, position it so that the dowel pin fits into the
seat of the groove insertion. The measuring system is protected against slipping on
the shaft by tightening the clamping ring with the Allen wrench.
Figure 8: Installation diagram
