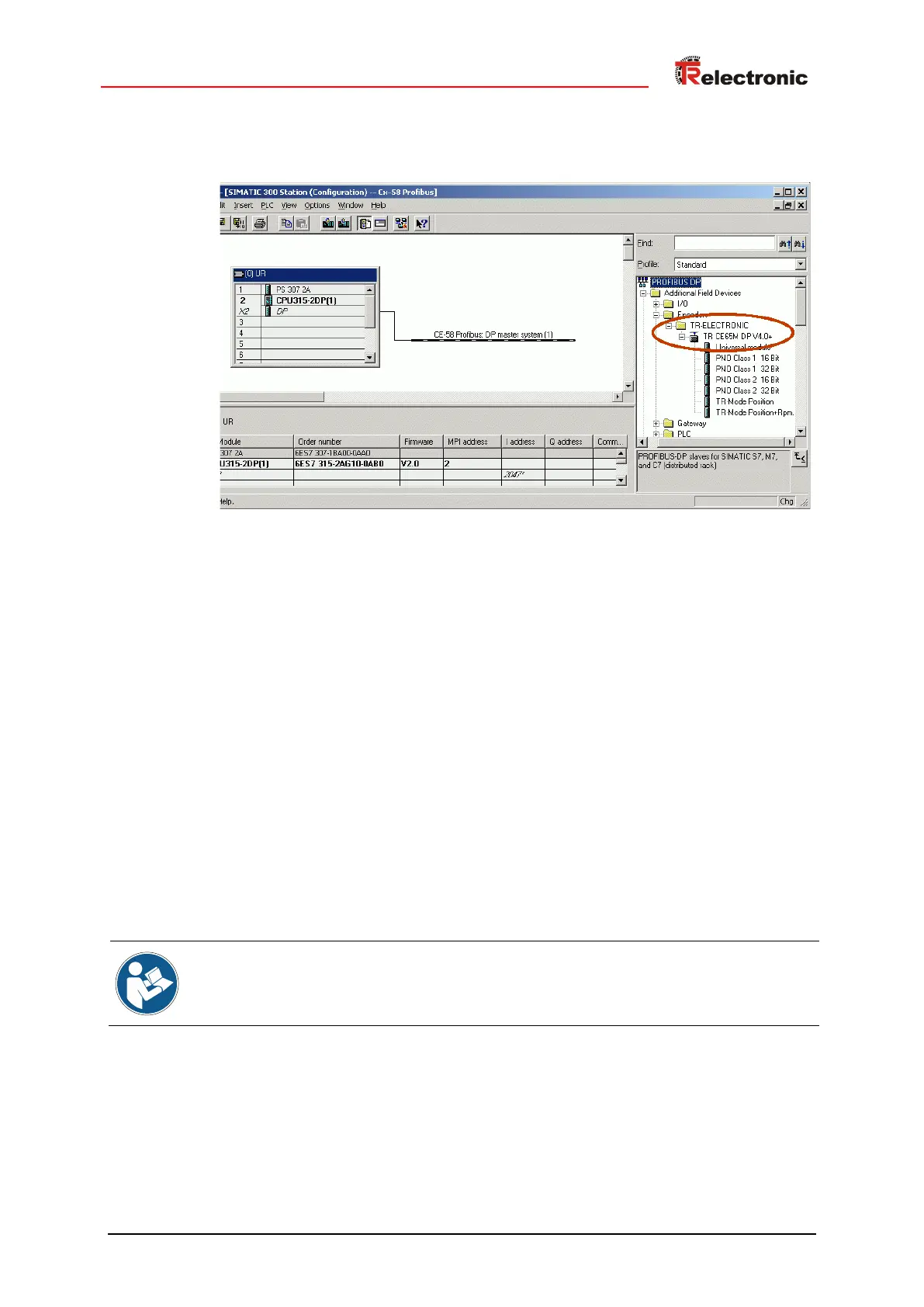

A new entry appears in the catalogue after installation of the GSD file:
PROFIBUS-DP-->Additional Field Devices-->Encoder-->TR-ELECTRONIC
The entry for the GSD file TR09AAAB.GS_ is:”TR CE58_65M DP V1”
The sequence of the respective configuration options is given in this entry:
– PNO Class 1 16 bit, see page 81
– PNO Class 1 32 bit, see page 81
– PNO Class 2 16 bit, see page 82
– PNO Class 2 32 bit, see page 83
– TR-Mode Position, see page 84
– TR-Mode Position+Velocity, see page 85
The entry for the GSD file TR0DAAAB.GS_ is:”TR CO58_80 DP”
The sequence of the respective configuration options is given in this entry:
– PNO Class 1 16 bit, see page 81
– PNO Class 1 32 bit, see page 81
– PNO Class 2 16 bit, see page 82
– PNO Class 2 32 bit, see page 83
– TR-Mode High Resolution, see page 87
– TR-Mode High Resolution+Velocity, see page 88
The entry Universal module is erroneously available for some systems, but must
not be used!
