4.3 Type with connectors
4.3.1 Connection

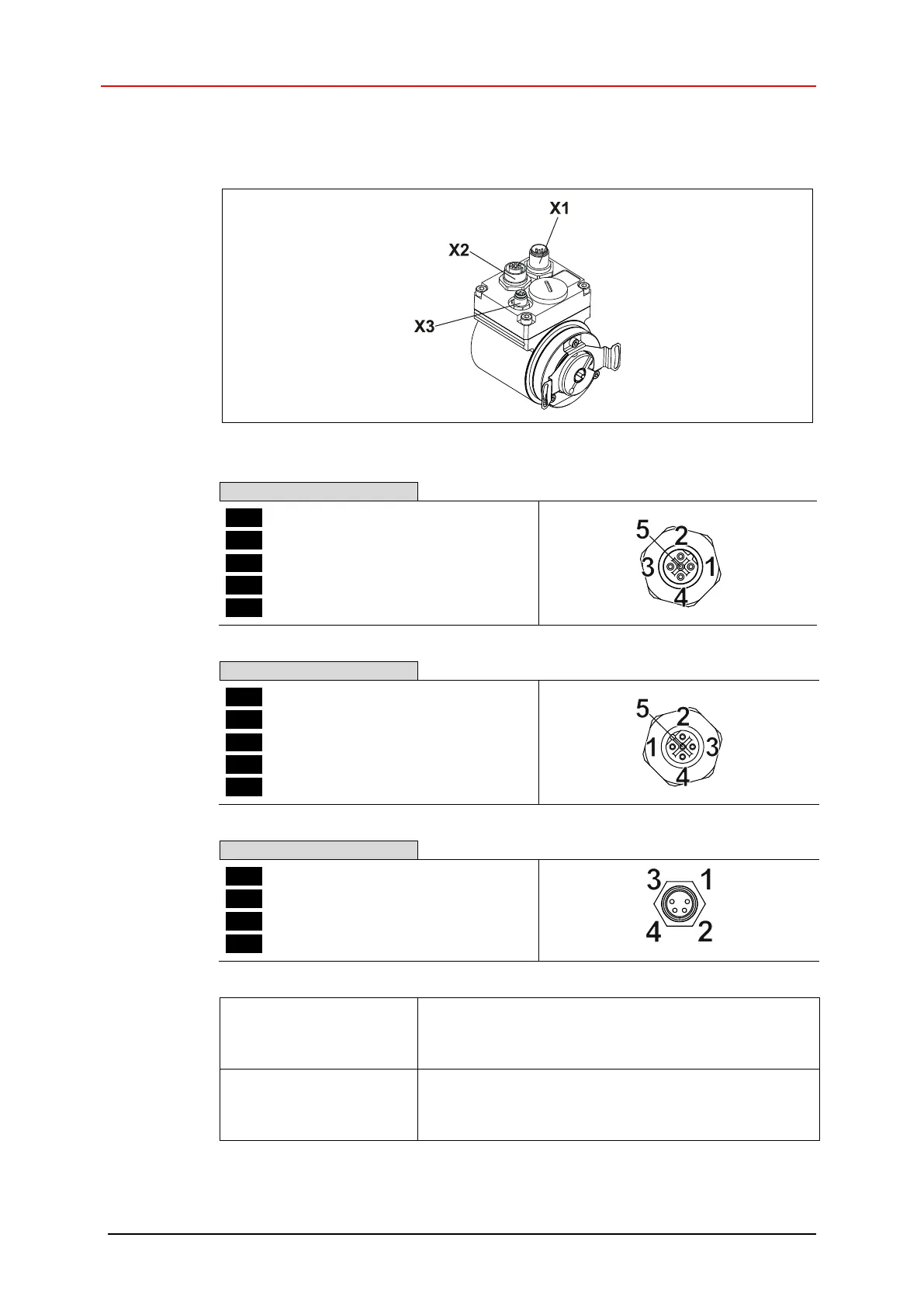

Figure 2: Type with connectors
X1, PROFIBUS_IN
Male socket, M12x1-5 pol. B-coded
Pin 1 N.C.
Pin 2 PROFIBUS, Data A
Pin 3 N.C.
Pin 4 PROFIBUS, Data B
Pin 5 N.C.
X2, PROFIBUS_OUT
Female socket, M12x1-5 pol. B-coded
Pin 1 N.C.
Pin 2 PROFIBUS, Data A
Pin 3 N.C.
Pin 4 PROFIBUS, Data B
Pin 5 N.C.
X3, Supply Voltage
Male socket, M8x1-4 pol.
Pin 1 Supply Voltage, 11-27 V DC
Pin 2 N.C.
Pin 3 0 V, GND
Pin 4 N.C.
Mating connector for X1
Female angled connector BINDER: 99-1436-820-05
Female cable connector BINDER: 99-1436-810-05
Female cable connector LUMBERG: 0976 PFC 101
Female cable connector PHOENIX CONTACT: 15 07 77 7
Mating connector for X2
Male angled connector BINDER: 99-1437-820-05
Male cable connector BINDER: 99-1437-810-05
Male cable connector LUMBERG: 0976 PMC 101
Male cable connector PHOENIX CONTACT: 15 07 76 4
