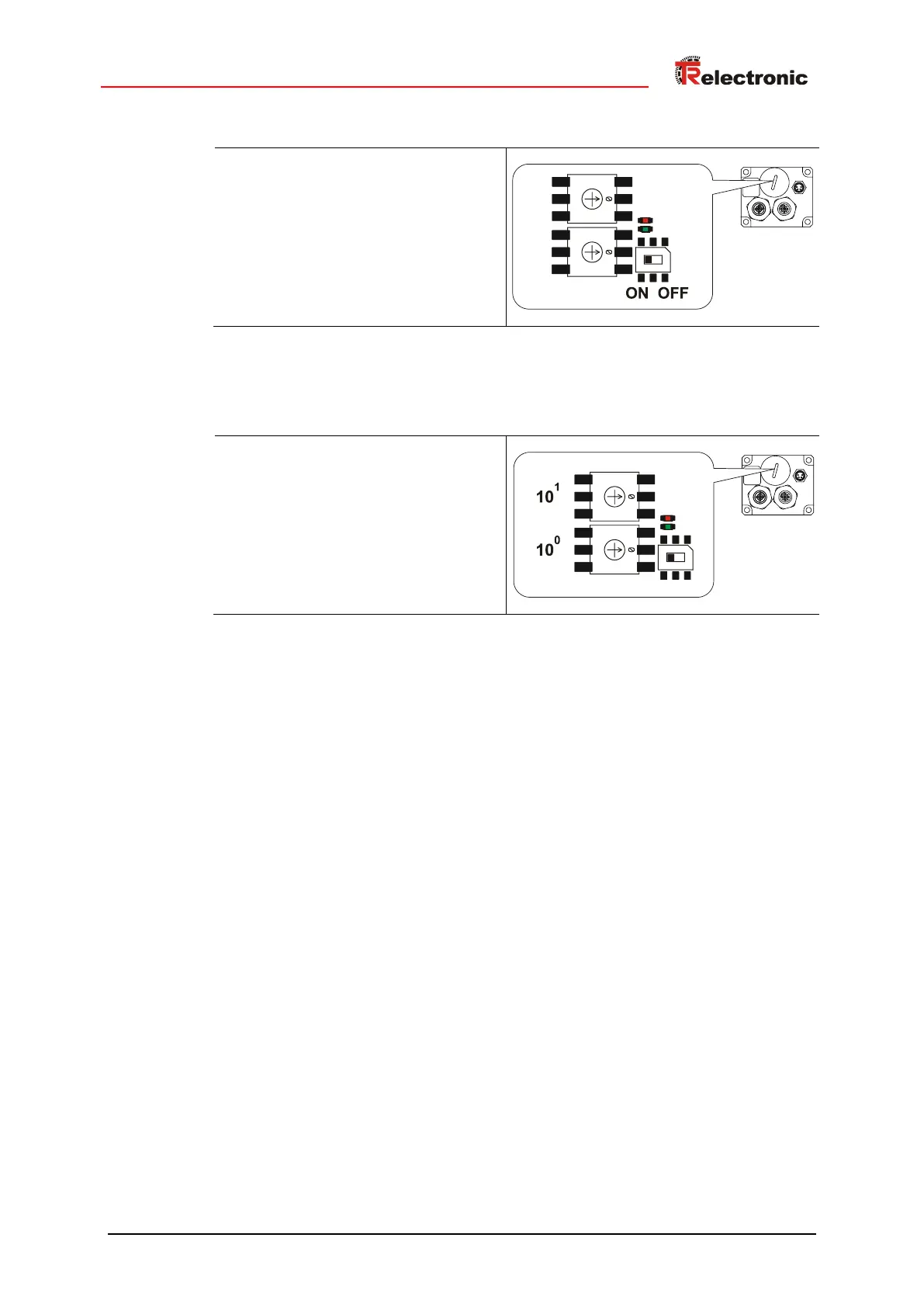

4.3.2 Bus termination
If the measuring system is the last slave
in the PROFIBUS segment,
the bus is to
be terminated with the termination
switch = ON. In this state, the
subsequent PROFIBUS is decoupled.
4.3.3 Bus address
Valid PROFIBUS addresses: 3 - 99
10
0
: Setting the 1st position
10
1
: Setting the 10th position
The device does not start
up with an
invalid station address.
4.3.4 Shield cover
The shielding is to be connected with large surface on the mating connector.
