Trace Engineering PS Series

TECHNICAL INFORMATION
Copyright  Trace Engineering Company, Inc.
5916 - 195th Street N.E.
Arlington, WA 98223
Telephone: 360/435-8826
Fax: 360/435-2229
www.traceengineering.com
PS Series Inverter/Charger
Part No. 3597
Rev. D: November 23, 1999
Page
121

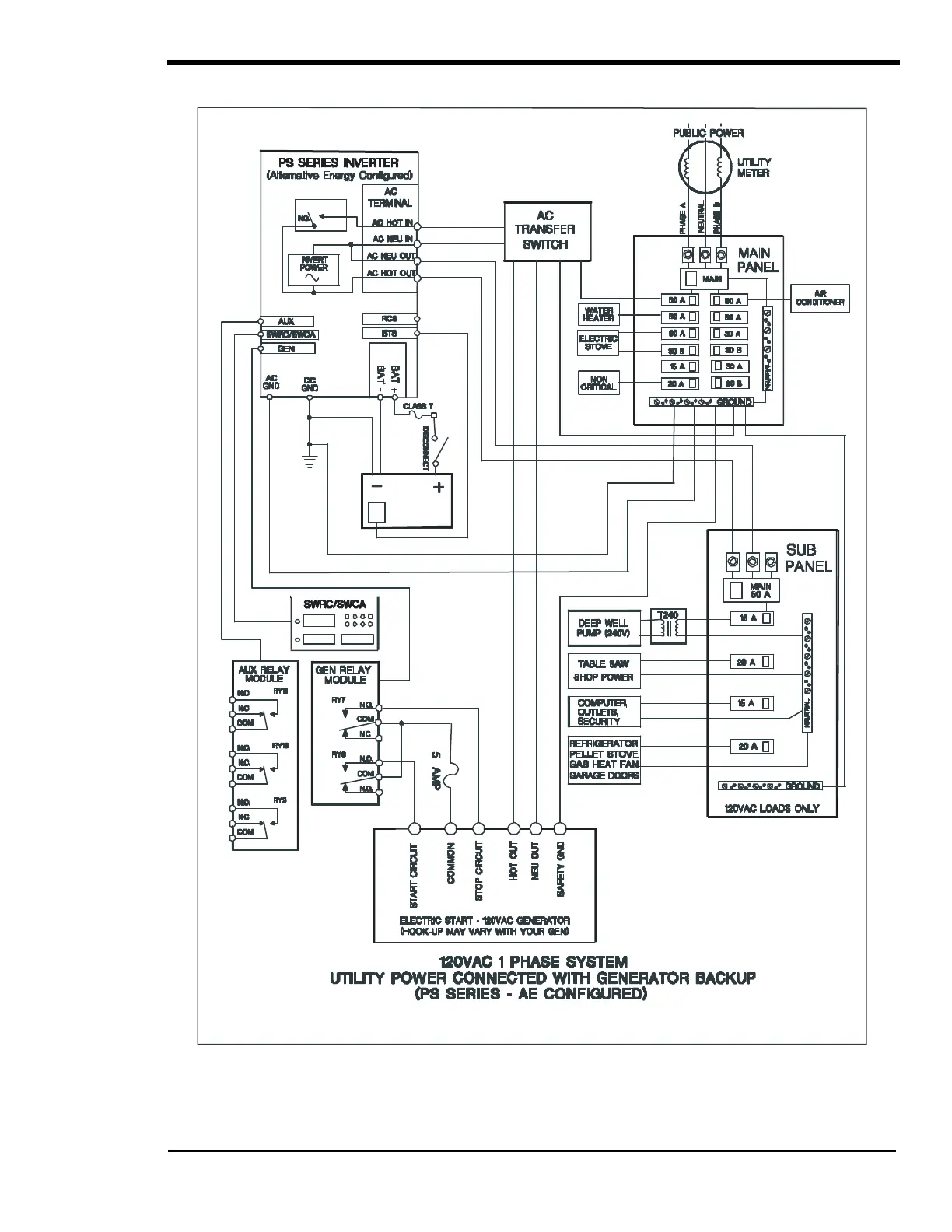

Figure 40, PS Series Installation Schematic
