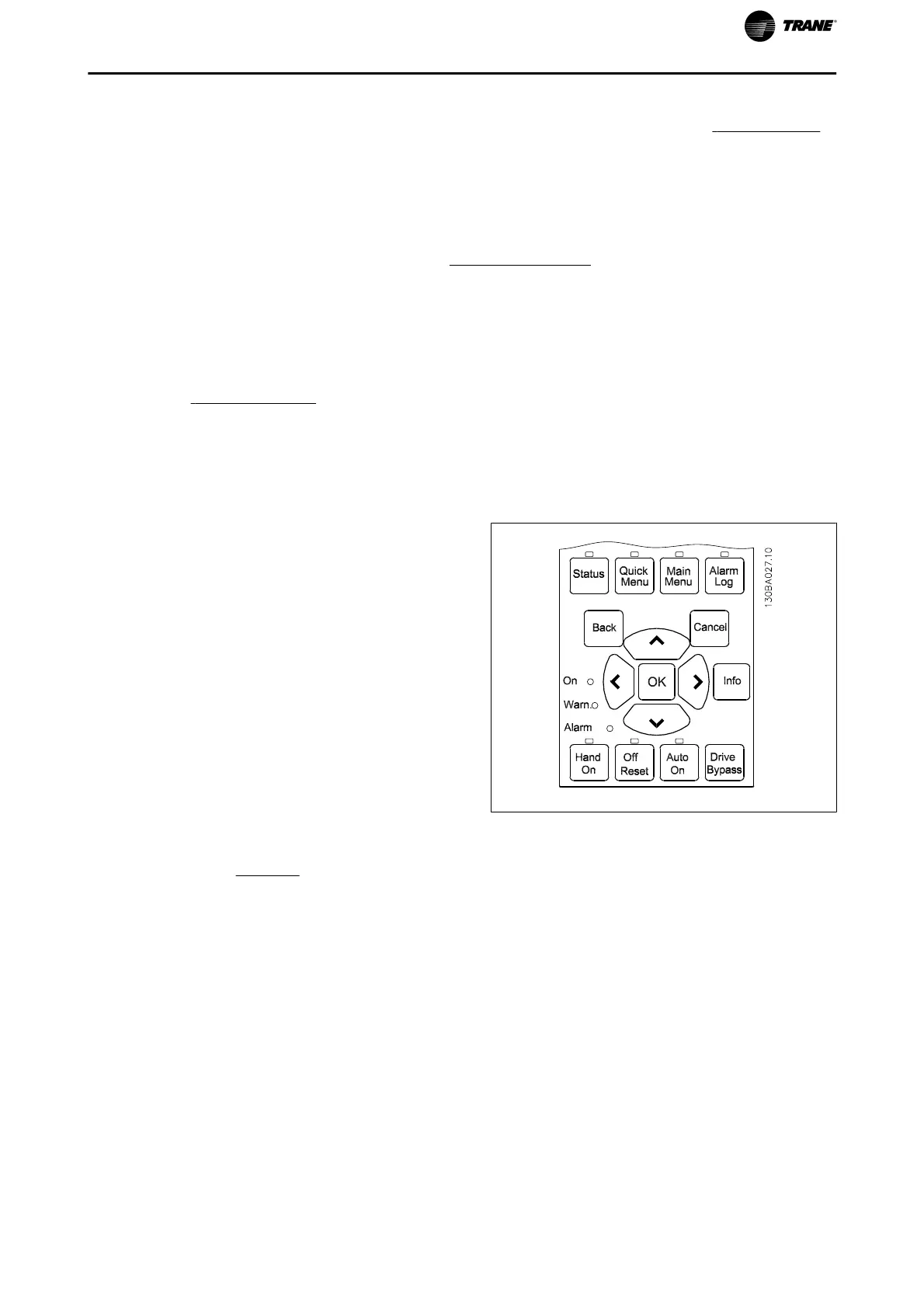

[Off]
stops the connected motor. The key can be selected as Enable [1] or Disable [0] via par.0-41
[Off] Key on LCP. If
no external stop function is selected and the [Off] key is inactive the motor can only be stopped by disconnecting
the mains supply.
[Auto on]
enables the frequency converter to be controlled via the control terminals and/or serial communication. When
a start signal is applied on the control terminals and/or the bus, the frequency converter will start. The key can
be selected as Enable [1] or Disable [0] via par.0-42
[Auto on] Key on LCP.
NOTE: An active HAND-OFF-AUTO signal via the digital inputs has higher priority than the control keys [Hand
on] – [Auto on].
[Reset]
is used for resetting the frequency converter after an alarm (trip). It can be selected as
Enable
[1] or
Disable
[0]
via par.0-43
[Reset] Key on LCP.
The parameter shortcut can be carried out by holding down the [Main Menu] key for 3 seconds. The parameter
shortcut allows direct access to any parameter.
Quick Transfer of Parameter Settings between Multiple Frequency Converters
Once the set-up of a frequency converter is complete,
we recommend that you store the data in the
keypad or on a PC via Trane Drive Utility.
Data storage in keypad:
1. Go to par.0-50
LCP Copy
2. Press the [OK] key
3. Select “All to keypad”
4. Press the [OK] key
All parameter settings are now stored in the keypad indicated by the progress bar. When 100% is reached, press
[OK].
NOTICE
Stop the motor before performing this operation.
You can now connect the keypad to another frequency converter and copy the parameter settings to this fre-
quency converter as well.
How to Program
TR200 Programming Guide 25
