Specifications and Requirements
43-06955 - Rev Q Page 11
Epic 430
TM
Specifications and Requirements

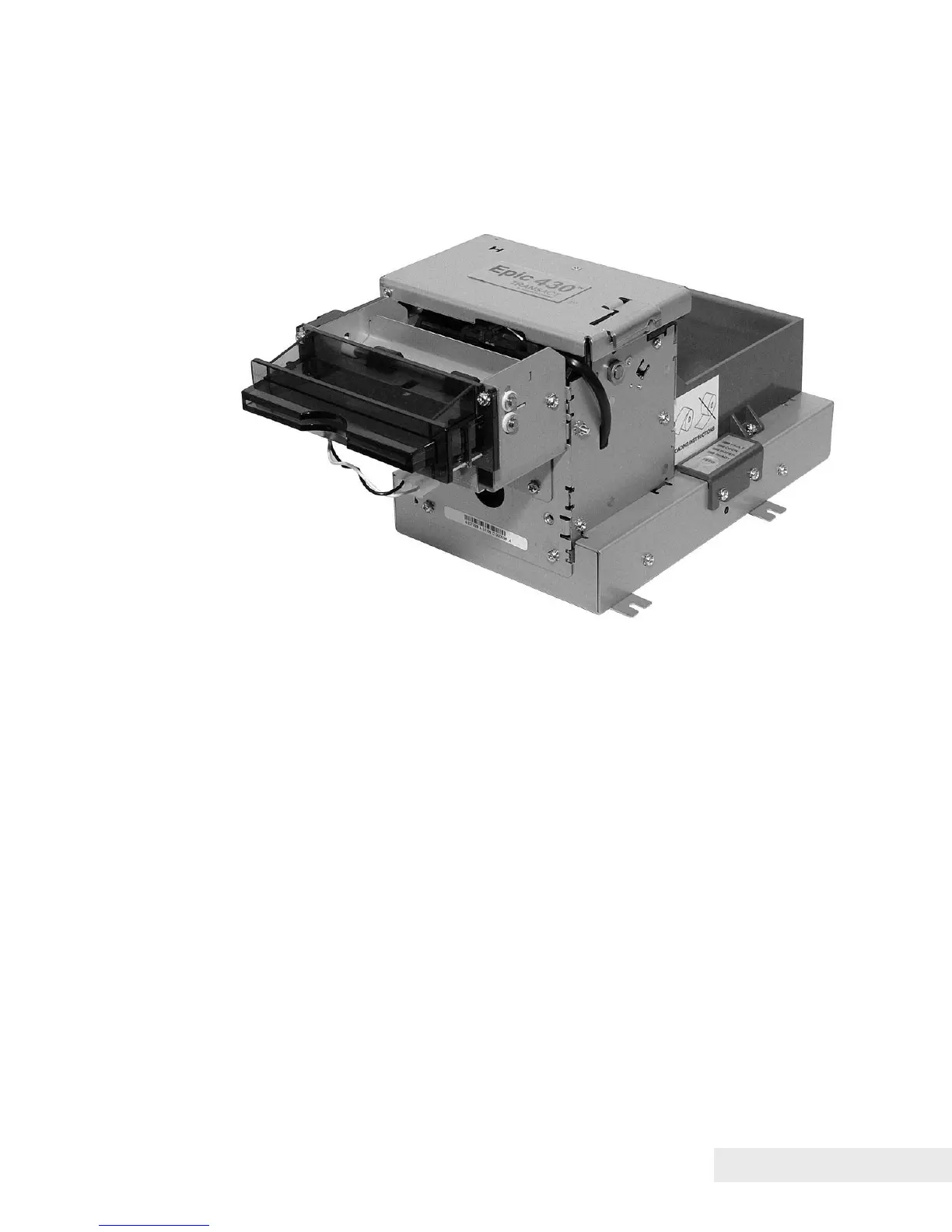

Figure 1. Epic 430
TM
Printer.
Standard Features
The following features are standard for Epic 430
TM
printers:
Modular design, with electronics base assembly capable of being mounted
remotely up to two feet from the printer mechanism.
Full-cut auto-cutter module as part of printer mechanism
Minimum 150 mm (6.0”)/second print speed (monochrome black text).
203 dpi print resolution (8 dots/mm.)
Special print scalable to 8x with reverse, underscore, italic, and bold print
44/57 characters per line for 80 mm paper width
Face-up print orientation
ASCII and Unicode character encoding:
Ladder and fence barcode printing supporting UPC-A, UPC-E, EAN13,
EAN8, Code39, ITF, CODABAR, Code93, Code 128, Code31, and
Interleaved 2 of 5
Serial RS232C and USB interfaces built into Main Controller PCB.
Selectable baud rates
Drivers for Windows XP and XPe
