Assembly and Disassembly
Page 52 43-06955 - Rev Q
Main Printer Components
The Epic 430 printer is constructed using a set of modular assemblies, as
shown in the exploded view in Figure 14.

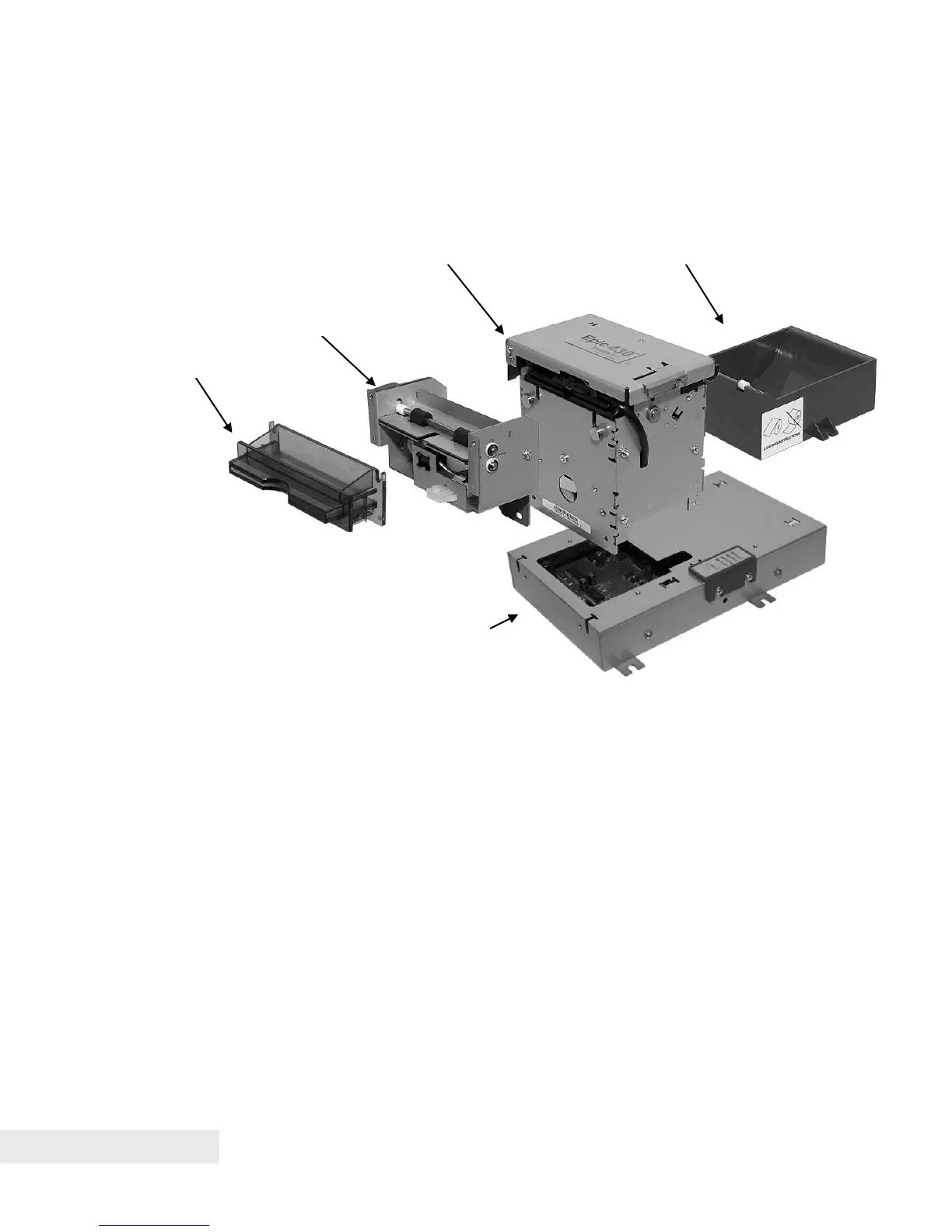

Figure 14. Exploded View of Main Assemblies for Epic 430 Printer.
Note that the electronics base assembly shown, and its corresponding paper
holder, is designed to either be attached to the main printer assembly or
mounted separately at a distance of up to two feet, for OEM gaming machine
and kiosk applications. Limiting factors in this mounting distance include the
length of the umbilical cables between the base assembly and the print
mechanism assembly, as well as a clear paper path between the paper
bucket, printer and transport assemblies.
Electronics Base
Assembly
